HGP105N15S
HGP105N15S is 150V N-Ch Power MOSFET manufactured by Hunteck.

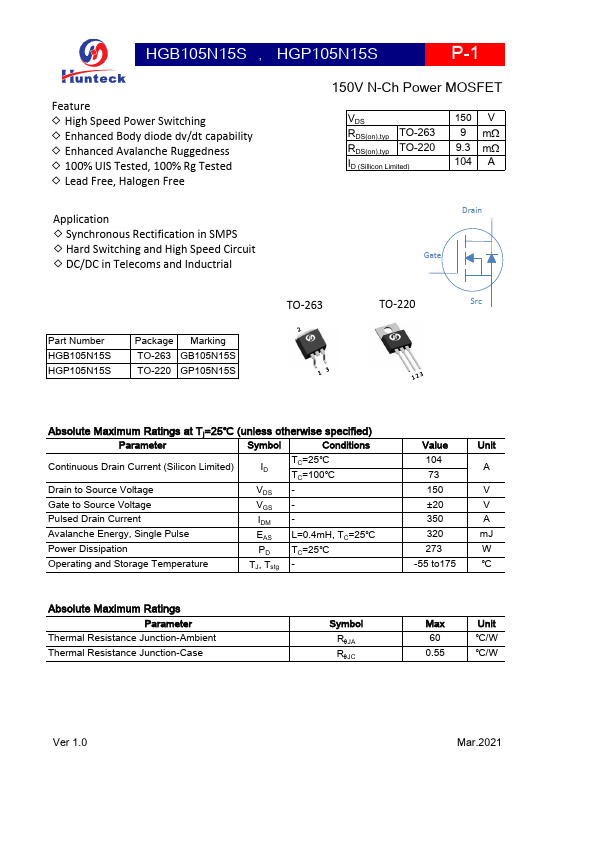

HGB105N15S , HGP105N15S
P-1
Feature ◇ High Speed Power Switching ◇ Enhanced Body diode dv/dt capability ◇ Enhanced Avalanche Ruggedness ◇ 100% UIS Tested, 100% Rg Tested ◇ Lead Free, Halogen Free
150V N-Ch Power MOSFET
VDS RDS(on),typ TO-263 RDS(on),typ TO-220
ID (Sillicon Limited)
150 V 9 mW 9.3 mW
104 A
Application ◇ Synchronous Rectification in SMPS ◇ Hard Switching and High Speed Circuit ◇ DC/DC in Teles and Inductrial
Drain Gate
TO-263
TO-220
Src
Part Number HGB105N15S HGP105N15S
Package Marking TO-263 GB105N15S TO-220...
