CD4070 Datasheet (I-CORE)

Part CD4070
Description Quad 2-input Exclusive-or Gate
Manufacturer I-CORE
Size 766.76 KB
CD4070 Datasheet (PDF) Download
Pricing from 0.4261 USD, available from Rochester Electronics and DigiKey.Powered by Octopart
🏠
I-CORE

CD4070 Overview

Key Specifications

Package: SOP
Mount Type: Surface Mount
Pins: 14
Max Voltage (typical range): 18 V

Description

2019-05-A1 2019-05 New 2023-04-B1 2023-04 Update the template 2025-08-B2 2025-08 Modify the content of general description; modify IOH in the DC Characteristics 1/2; update the package information Address：Building B4,NO.777,Jianzhu Road,Binhu District,Wuxi City,Jiangsu Province http://www.i-core. cn P.C.：214072 1/ 12 VER：2025-08-B2 Wuxi I-CORE Electronics Co., Ltd.

Key Features

  • Wide supply voltage range from 3V to 15V i-core
  • 5V,10V,and15Vparametricratings
  • Specified from -40℃ to +125℃
  • Packaging information: DIP14/SOP14/TSSOP14

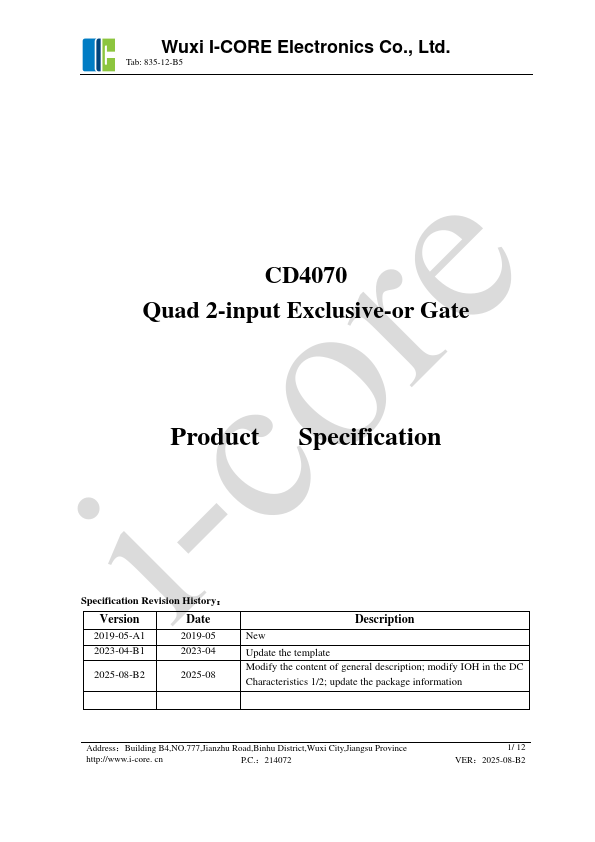

CD4070 datasheet preview

Price & Availability

Seller Inventory Price Breaks Buy
Rochester Electronics 3694 100+ : 0.4261 USD
500+ : 0.3835 USD
1000+ : 0.3537 USD
10000+ : 0.3153 USD		 View Offer
DigiKey 1331 1+ : 0.77 USD
10+ : 0.552 USD
25+ : 0.496 USD
100+ : 0.4349 USD		 View Offer

Similar Parts

Part Number Manufacturer Description
CD4070BM National Semiconductor Quad 2-Input EXCLUSIVE-OR/ NOR Gate
CD4070BC National Semiconductor Quad 2-Input EXCLUSIVE-OR/ NOR Gate
CD4070B RCA CMOS Quad Exclusive-OR and Exclusive-NOR Gate
CD4070BMS Intersil CMOS Quad Exclusive OR and Exclusive NOR Gates
CD4070BE Harris Semiconductor CMOS Quad Exclusive OR and Exclusive NOR Gate
🏠
