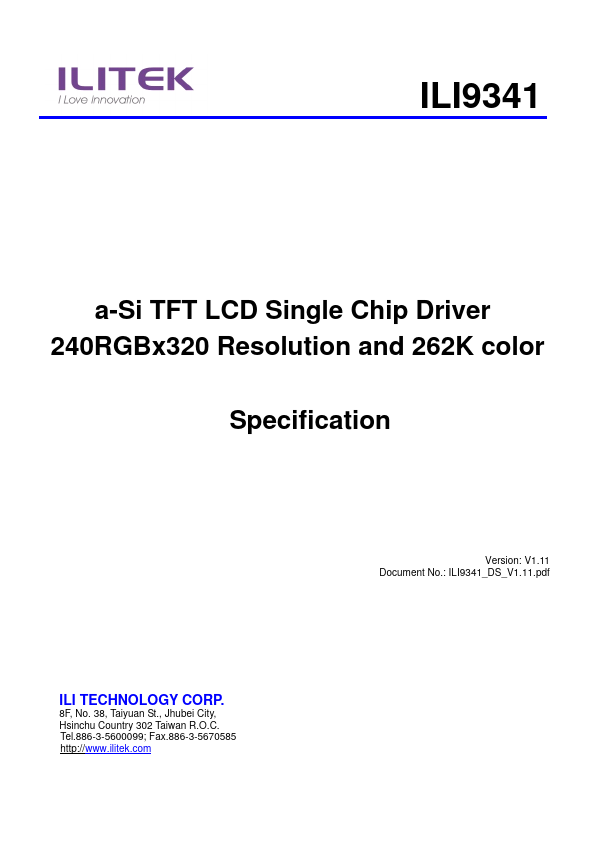

ILI9341
Overview

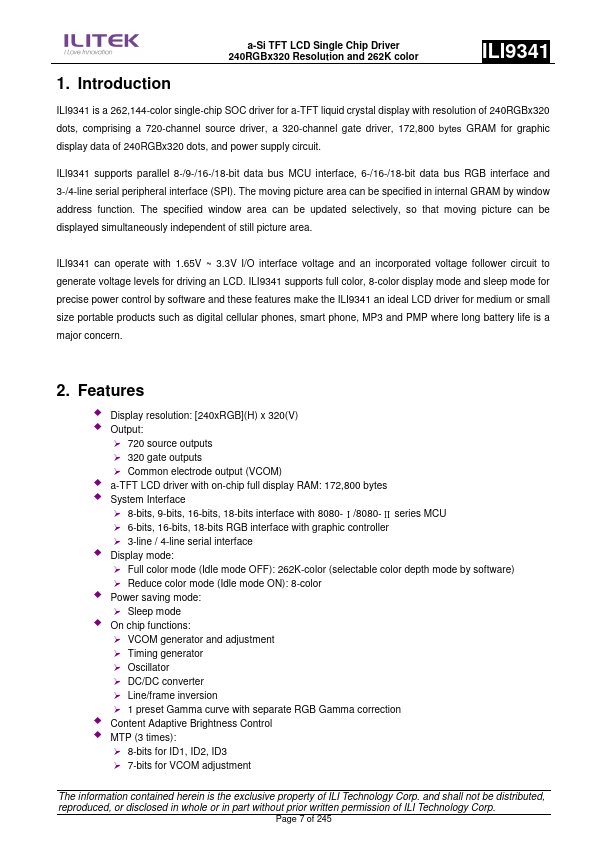

ILI9341 is a 262,144-color single-chip SOC driver for a-TFT liquid crystal display with resolution of 240RGBx320 dots, comprising a 720-channel source driver, a 320-channel gate driver, 172,800 bytes GRAM for graphic display data of 240RGBx320 dots, and power supply circuit. ILI9341 supports parallel 8-/9-/16-/18-bit data bus MCU interface, 6-/16-/18-bit data bus RGB interface and 3-/4-line serial peripheral interface (SPI).

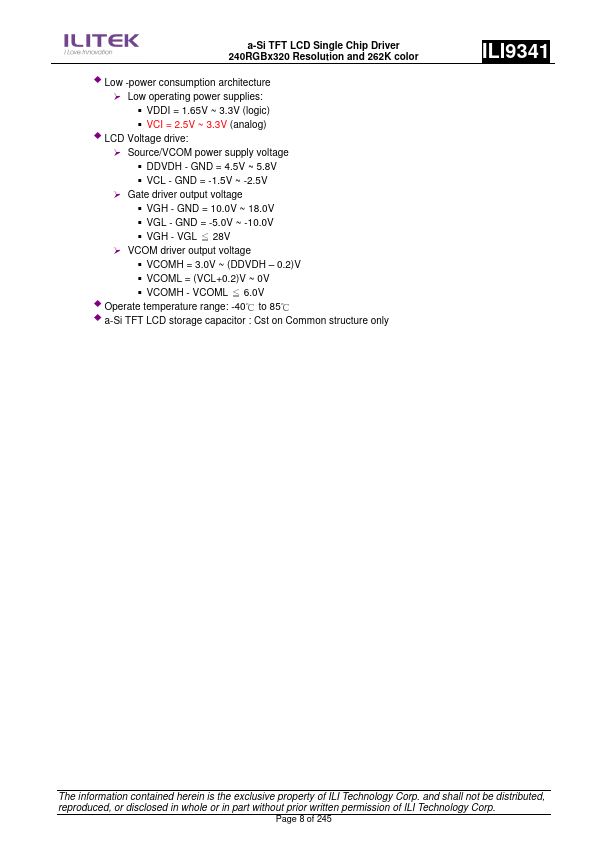

- Features Display resolution: [240xRGB](H) x 320(V) Output: 720 source outputs 320 gate outputs Common electrode output (VCOM) a-TFT LCD driver with on-chip full display RAM: 172,800 bytes Ⅰ Ⅱ System Interface 8-bits, 9-bits, 16-bits, 18-bits interface with 8080- /8080- series MCU 6-bits, 16-bits, 18-bits RGB interface with graphic controller 3-line / 4-line serial interface Display mode: Full color mode (Idle mode OFF): 262K-color (selectable color depth mode by software) Reduc
