BD677 - NPN Transistor

Product Overview

📥 Download Datasheet

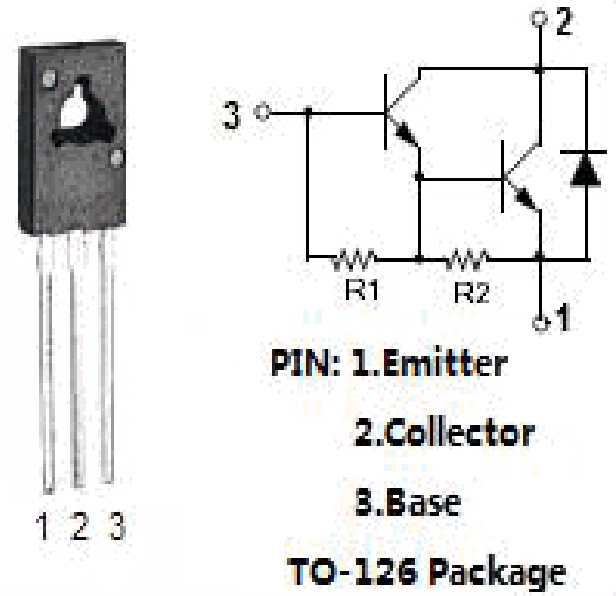

Datasheet preview – BD677

Datasheet Details

Part number BD677
Manufacturer INCHANGE
File Size 184.89 KB
Description NPN Transistor
Datasheet download datasheet BD677 Datasheet
Additional preview pages of the BD677 datasheet.

Product details

Description

Collector Emitter Breakdown Voltage : V(BR)CEO = 60V DC Current Gain : hFE = 750(Min) @ IC= 1.5 A Complement to Type BD678 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for use as output devices in complementary general-purpose amplifier applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 60 V VCEO Collector-Emitter Voltage 6
