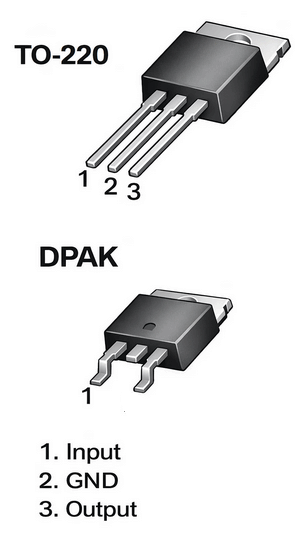

Inchange Semiconductor KA7815
Three Terminal Positive Voltage Regulator
| Part No. | KA7815 |
|---|---|
| Datasheet | KA7815 Download |
| Manufacturer |  Inchange Semiconductor |
| Description | Three Terminal Positive Voltage Regulator |
| Buy | Stock & Price |
FEATURES
●Output current in excess of 1.0A●Output voltage of 15V
●Internal thermal overload protection
●Output transition Safe-Area compensation
●100% avalanche tested
●Minimum Lot-to-Lot variations for robust device performance and reliable operation
ABSOLUTE MAXIMUM RATINGS
(Ta=25℃) SYMBOL PARAMETER RATING UNIT Vi DC input voltage 35 V Io Output current Ptot Power dissipation internally limited internally limited TOP Operating junction temperature 0~125 ℃ Tstg Storage temperature -65~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Rth j-a Thermal Resistance, Junction to Case Thermal Resistance,Junction to Ambient MAX 5 65 UNIT ℃/W ℃/W isc website： 1 isc & iscsemi is registered trademark isc Three Terminal Positive Voltage Regulator●
ELECTRICAL CHARACTERISTICS
Tj=25℃ (Vi= 23V, IO=0.5A, Ci= 0.33μF, CO= 0.1μF unless otherwise specified) SYMBOL PARAMETER CONDITIONS VO Output Voltage VO Output Voltage △VV Line Regulation △Vi Load Regulation Iq Quiescent Current Vin=23V; IO=500mA IO=5 mA to 1.0A;Po≤15W Vin=18.5 to 30V; 17.5V≤Vin≤30V; 20V≤Vin≤26V 5.0mA≤IO≤1.5A; 250mA≤IO≤750mA Vin=23V; IO=1A △q1 Quiescent Current Change 5.0mA≤IO≤1.
