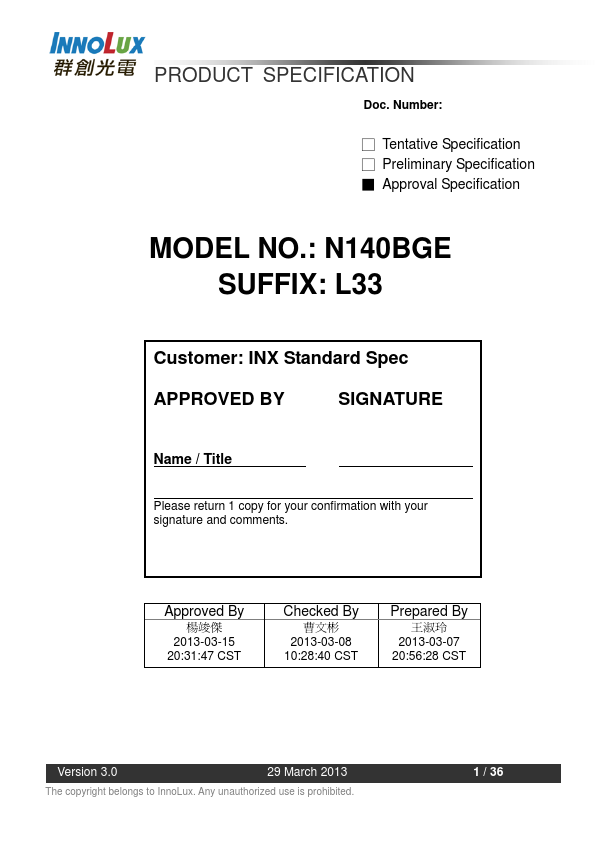

N140BGE-L33

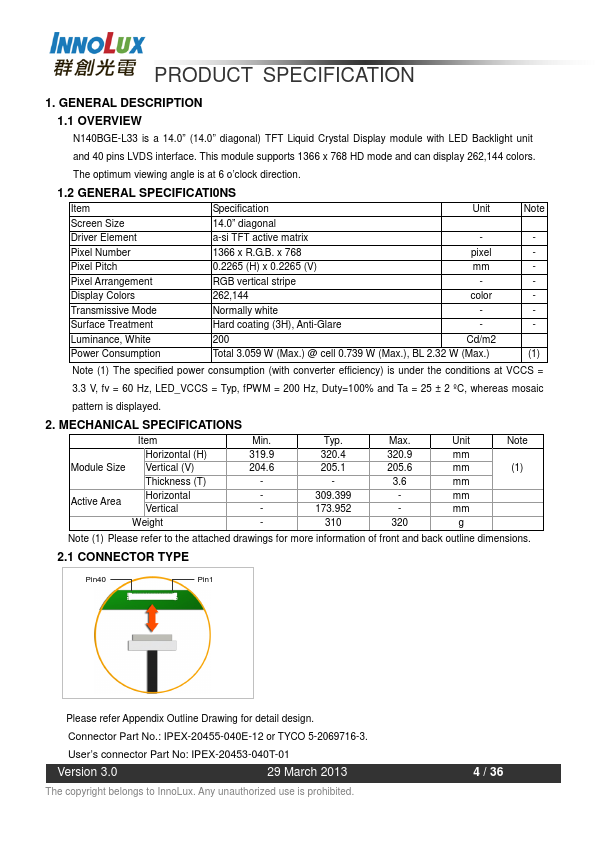

DESCRIPTION
1.1 OVERVIEW
N140BGE-L33 is a 14.0” (14.0” diagonal) TFT Liquid Crystal Display module with LED Backlight unit and 40 pins LVDS interface. This module supports 1366 x 768 HD mode and can display 262,144 colors.
The optimum viewing angle is at 6 o’clock direction.
1.2 GENERAL SPECIFICATI0NS
Item Screen Size Driver Element Pixel Number Pixel Pitch Pixel Arrangement Display Colors Transmissive Mode Surface Treatment Luminance, White Power Consumption
Specification
Unit
14.0” diagonal a-si TFT active matrix
- 1366 x R.G.B. x 768 pixel
0.2265 (H) x 0.2265 (V) mm
RGB vertical stripe
- 262,144 color
Normally white
- Hard coating (3H), Anti-Glare
- 200
Cd/m2
Total 3.059 W (Max.) @ cell 0.739 W (Max.), BL 2.32 W (Max.)
Note
- (1)
Note (1) The specified power consumption (with converter efficiency) is under the conditions at VCCS =
3.3 V, fv = 60 Hz, LED_VCCS = Typ, f PWM = 200 Hz, Duty=100% and Ta = 25 ± 2 ºC, whereas mosaic pattern is displayed.
