N156BGE-L31
DESCRIPTION
1.1 OVERVIEW

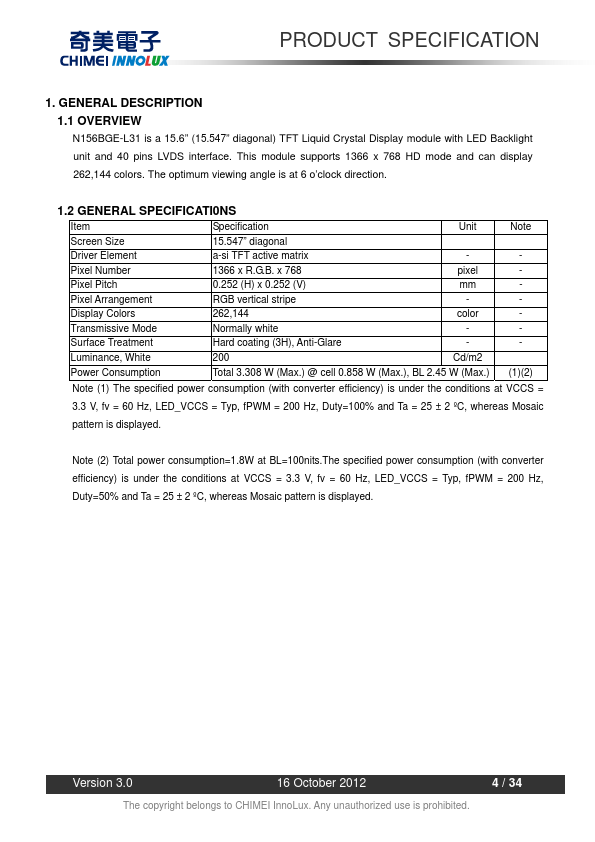

N156BGE-L31 is a 15.6” (15.547” diagonal) TFT Liquid Crystal Display module with LED Backlight unit and 40 pins LVDS interface. This module supports 1366 x 768 HD mode and can display 262,144 colors. The optimum viewing angle is at 6 o’clock direction.

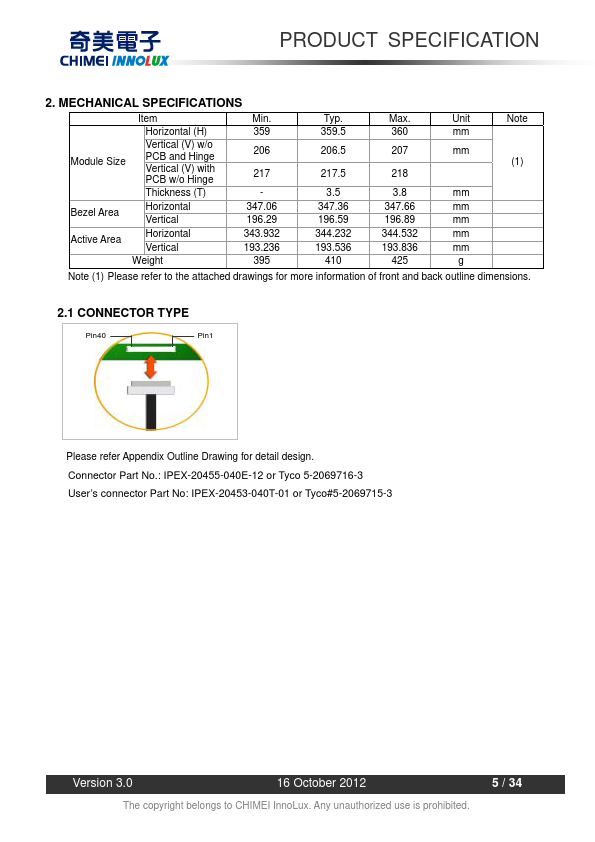

1.2 GENERAL SPECIFICATI0NS
Item
Specification
Unit
Screen Size
15.547” diagonal
Driver Element a-si TFT active matrix
- Pixel Number
1366 x R.G.B. x 768 pixel
Pixel Pitch
0.252 (H) x 0.252 (V) mm
Pixel Arrangement
RGB vertical stripe
- Display Colors
262,144 color
Transmissive Mode
Normally white
- Surface Treatment
Hard coating (3H), Anti-Glare
- Luminance, White
Cd/m2
Power Consumption
Total 3.308 W (Max.) @ cell 0.858 W (Max.), BL 2.45 W (Max.)
Note
- (1)(2)
Note (1) The specified power consumption (with converter efficiency) is under the conditions at VCCS =
3.3 V, fv = 60 Hz, LED_VCCS = Typ, f PWM = 200 Hz, Duty=100% and Ta = 25 ± 2 ºC, whereas Mosaic pattern is...
