INPAQ TECHNOLOGY CO., LTD.

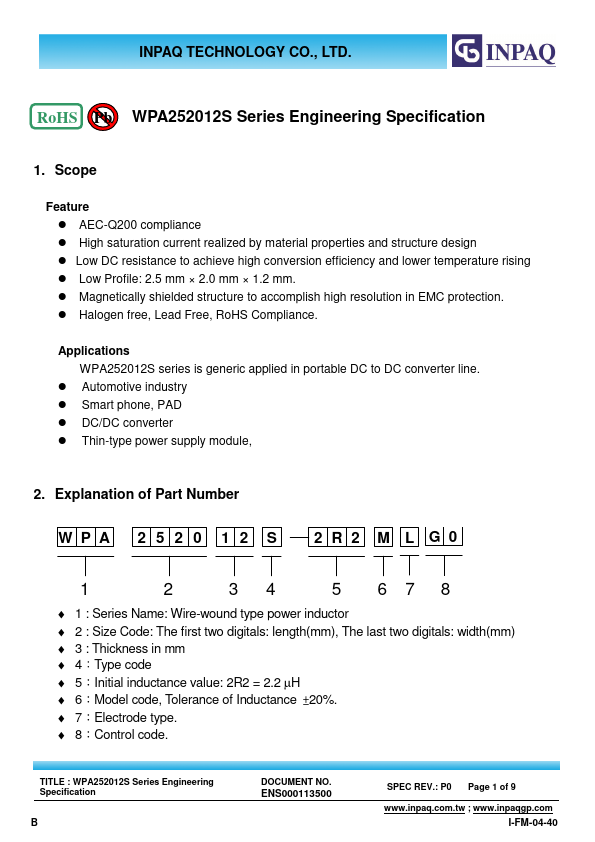

RoHS Pb WPA252012S Series Engineering Specification
1. Scope
Feature AEC-Q200 compliance High saturation current realized by material properties and structure design Low DC resistance to achieve high conversion efficiency and lower temperature rising Low Profile: 2.5 mm × 2.0 mm × 1.2 mm. Magnetically shielded structure to accomplish high resolution in EMC protection. Halogen free, Lead Free, RoHS Compliance.
Applications WPA252012S series is generic applied in portable DC to DC converter line. Automotive industry Smart phone, PAD DC/DC converter Thin-type power supply module,
2.
