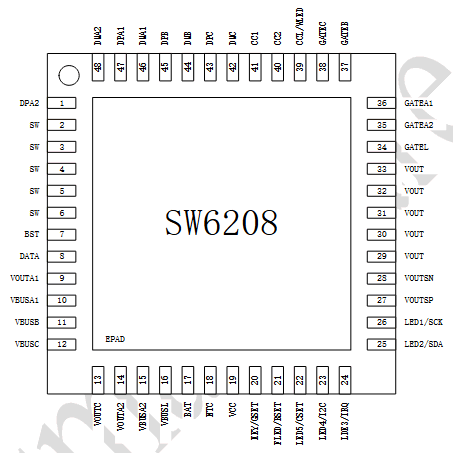

SW6208 Datasheet Highly Integrated Power Management

Manufacturer: ISMARTWARE

Overview: SW6208 Bidirectional Fast Charge Power Bank Total Solution Include PD for Bidirectional Fast Charge Power Bank 1.

Datasheet Details

Part number SW6208
Manufacturer ISMARTWARE
File Size 965.82 KB
Description highly integrated power management
Datasheet SW6208-ISMARTWARE.pdf

General Description

The SW6208 is a highly integrated power management IC for fast charge power bank application, and supports A+A+B+C+L five ports.

It integrates 5A switching charger, 22.5W synchronous boost, PPS/PD/QC/AFC/FCP/SCP/PE/SFCP fast charge protocol, fuel gauge, segment/led driver and power controller.

With simple external components, The SW6208 provides a turn-key high efficiency solution for fast charge battery management.

Key Features

  • Switching Charger.
  • Current up to 5A , Efficiency up to 96%.
  • Support 4.2/4.35/4.4/4.5V Battery Voltage.
  • Support JEITA.
  • Thermal Regulation.
  • Synchronous Boost.
  • Power up to 22.5W, Efficiency up to 95%.
  • Load Insert Detect and Light Load Detect.
  • Support Wireless Charge Mode.
  • Support Small Current Charge Mode.
  • Output Fast Charge Protocol.
  • Support PPS/PD3.0/PD2.0.
  • Support QC4+/QC4/QC3.0/.
