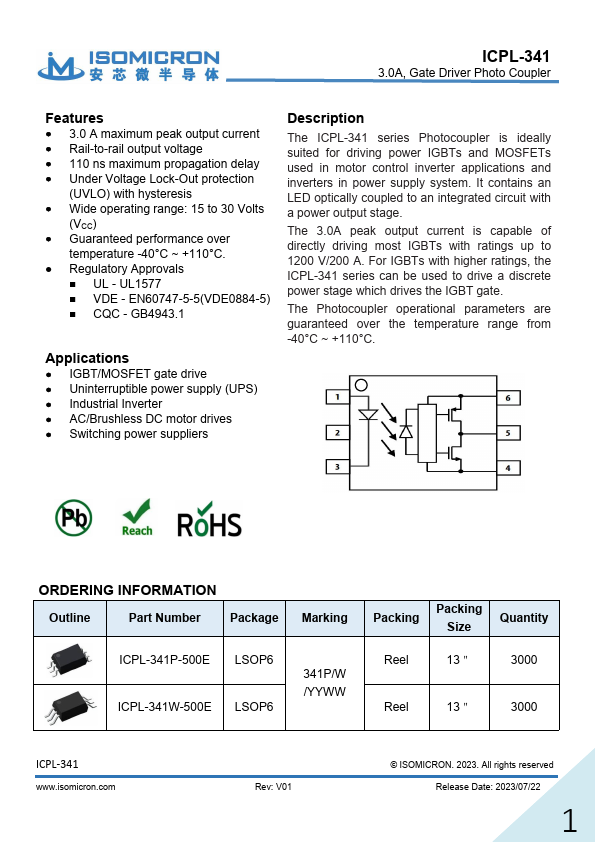

Datasheet Summary
3.0A, Gate Driver Photo Coupler
Features
- 3.0 A maximum peak output current
- Rail-to-rail output voltage
- 110 ns maximum propagation delay
- Under Voltage Lock-Out protection
(UVLO) with hysteresis
- Wide operating range: 15 to 30 Volts
(VCC)
- Guaranteed performance over temperature -40°C ~ +110°C.
- Regulatory Approvals
- UL
- UL1577
- VDE
- EN60747-5-5(VDE0884-5)
- CQC
- GB4943.1
Applications
- IGBT/MOSFET gate drive
- Uninterruptible power supply (UPS)
- Industrial Inverter
- AC/Brushless DC motor drives
- Switching power suppliers
Description
The ICPL-341 series Photocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications...
