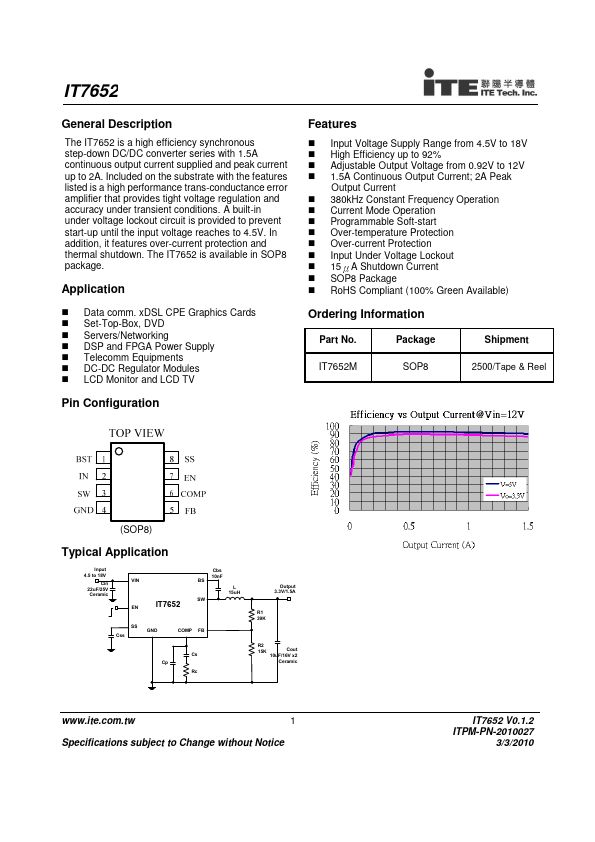

GENERAL DESCRIPTION
Included on the substrate with the features listed is a high performance trans-conductance error amplifier that provides tight voltage regulation and accuracy under transient conditions. A built-in under voltage lockout circuit is provided to prevent start-up until the input voltage reaches to 4.5V. In addition, it features over-current protection and thermal shutdown. The IT7652 is available in SOP8 package. Application Data comm. xDSL CPE Graphics Cards Set-Top-Box, DVD Servers/Networking DSP and FPGA Power Supply Telecomm Equipments DC-DC Regulator Modules LCD Monitor and LCD TV Pin Configuration FEATURES
Input Voltage Supply Range from 4.5V to 18V High Efficiency up to 92% Adjustable Output Voltage from 0.92V to 12V 1.5A Continuous Output Current; 2A Peak Output Current 380kHz Constant Frequency Operation Current Mode Operation Programmable Soft-start Over-temperature Protection Over-current Protection μ Input Under Voltage Lockout 15 A Shutdown Current SOP8 Package RoHS Compliant (100% Green Available) Ordering Information Part No.
ITE Tech
