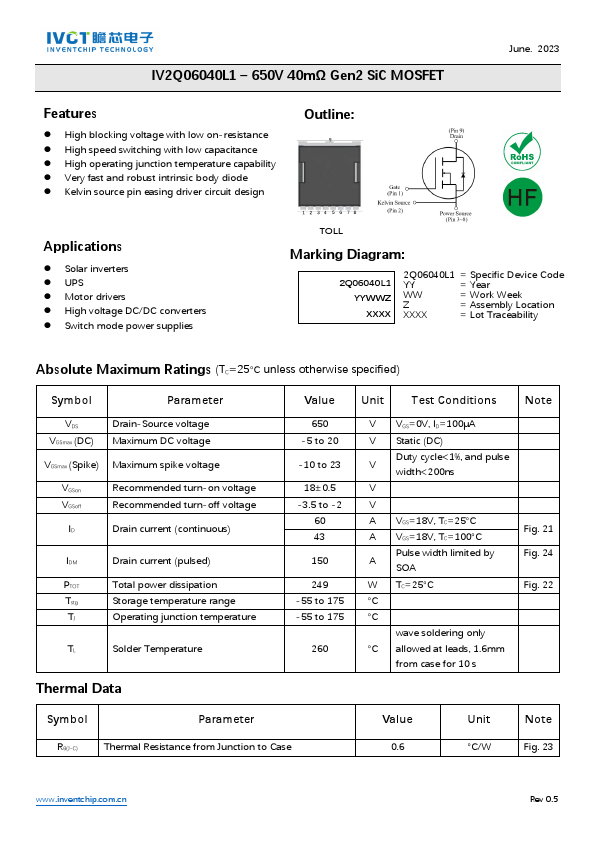

IV2Q06040L1
Features
- High blocking voltage with low on-resistance
- High speed switching with low capacitance
- High operating junction temperature capability
- Very fast and robust intrinsic body diode
- Kelvin source pin easing driver circuit design
Outline:
June. 2023
Applications
- Solar inverters
- UPS
- Motor drivers
- High voltage DC/DC converters
- Switch mode power supplies
TOLL
Marking Diagram:
2Q06040L1 YYWWZ XXXX
2Q06040L1 = Specific Device Code
= Year
= Work Week
= Assembly Location
XXXX
= Lot Traceability
Absolute Maximum Ratings (TC=25°C unless otherwise specified)
Symbol
Parameter
VDS VGSmax (DC)
Drain-Source voltage Maximum DC voltage
VGSmax (Spike) Maximum spike voltage
VGSon
Remended turn-on voltage
VGSoff
Remended turn-off voltage
Drain current (continuous)
Drain current...
