C3230 - 2SC3230

General Description

With TO-220 package Complement to type 2SA1276 Good linearity of hFE APPLICATIONS General purpose applications Cordless telephone tx final amplifier application for 1.7MHz system PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION Absolute maximu

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
C3231 2SC3231 SavantIC
C3233 2SC3233 Toshiba Semiconductor
C3235 2SC3235 SavantIC
C323Cxxxx Ceramic Leaded Capacitors Kemet Electronics
C3200 2SC3200 Korea Electronics

Other Datasheets by Inchange Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

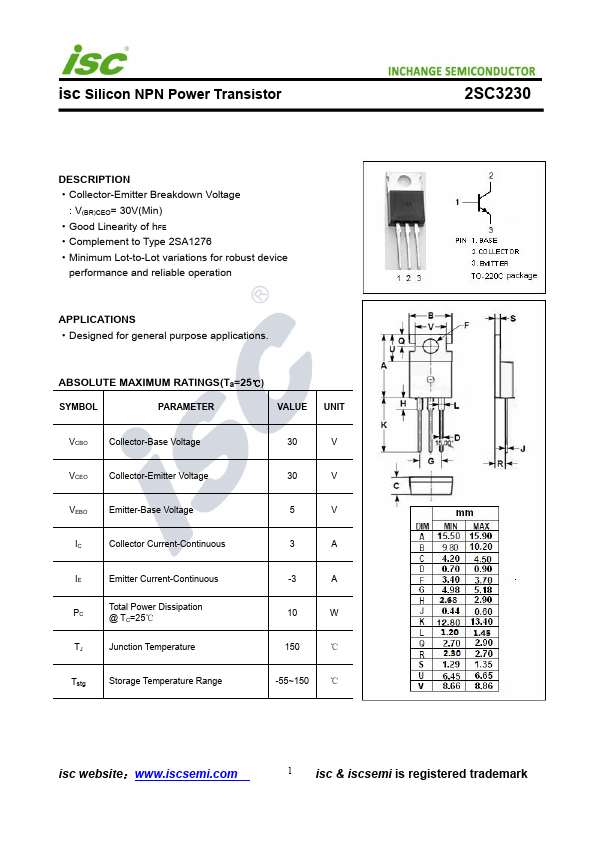

Inchange Semiconductor Product Specification Silicon NPN Power Transistors 2SC3230 DESCRIPTION ·With TO-220 package ·Complement to type 2SA1276 ·Good linearity of hFE APPLICATIONS ·General purpose applications ·Cordless telephone tx final amplifier application for 1.7MHz system PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION Absolute maximum ratings (Ta=25℃) SYMBOL VCBO VCEO VEBO IC IE PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Emitter current Collector power dissipation Junction temperature Storage temperature TC=25℃ CONDITIONS Open emitter Open base Open collector VALUE 30 30 5 3 -3 10 150 -55~150 UNIT V V V A A W ℃ ℃ Free Datasheet http://www.datasheet4u.
