C3371 - 2SC3371

Inchange Semiconductor

General Description

Collector-Emiiter Sustaining Voltage: VCEO(SUS)= 500V(Min.) Low Collector Saturation Voltage : VCE(sat)= 1.0V(Max.)@ IC= 8A High Speed Switching APPLICATIONS

Designed for power switching applications.

📥 Download Datasheet

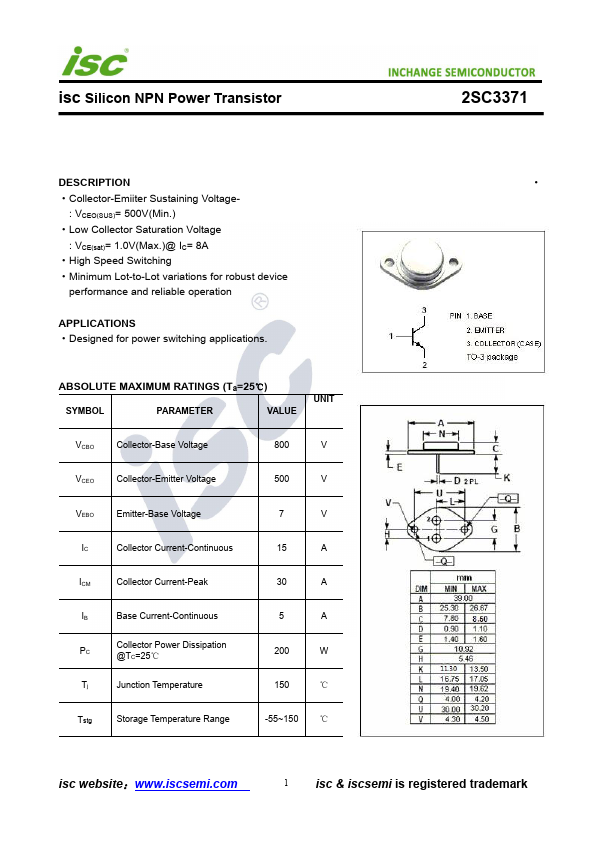

C3371 2sc3371 by Inchange Semiconductor - Datasheet Preview

Datasheet Details

Part number	C3371
Manufacturer	Inchange Semiconductor
File Size	214.83 KB
Description	2SC3371
Datasheet	C3371 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
C33716	Amplifier Transistors	ON Semiconductor
C33716	Amplifier Transistors	NXP
C33725	Bipolar Transistors	Multicomp
C33725	NPN Epitaxial Silicon Transistor	Fairchild Semiconductor
C33725	Amplifier Transistors	ON Semiconductor

Other Datasheets by Inchange Semiconductor

Part Number	Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

www.DataSheet4U.com INCHANGE Semiconductor isc Product Specification isc Silicon NPN Power Transistor 2SC3371 DESCRIPTION ·Collector-Emiiter Sustaining Voltage: VCEO(SUS)= 500V(Min.) ·Low Collector Saturation Voltage : VCE(sat)= 1.0V(Max.)@ IC= 8A ·High Speed Switching · APPLICATIONS ·Designed for power switching applications. ABSOLUTE MAXIMUM RATINGS (Ta=25℃) SYMBOL PARAMETER VCBO Collector-Base Voltage VCEO Collector-Emitter Voltage VEBO Emitter-Base Voltage w w w s c s .i VALUE 800 V 500 V 7 V 15 A 30 A 5 A UNIT n c . i m e IC Collector Current-Continuous ICM Collector Current-Peak IB B Base Current-Continuous Collector Power Dissipation @TC=25℃ Junction Temperature PC 200 W Tj 150 ℃ Tstg Storage Temperature Range -55~150 ℃ isc Website：www.iscsemi.
