C4758 - 2SC4758

Description

High Breakdown Voltage: VCBO= 1500V (Min) High Switching Speed Low Saturation Voltage APPLICATIONS

Horizontal deflection output for high resolution display.

High speed switching power supply output applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
C4700 OCXO Ultra-High Stability Excellent Temperature Stability SC-Cut Crystal Crystal Vectron International
C4704 Silicon NPN Epitaxial Hitachi Semiconductor
C4705 2SC4705 Sanyo
C4706 2SC4706 Sanken electric
C470IP Providing Professional Solutions VOIP

Other Datasheets by Inchange Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

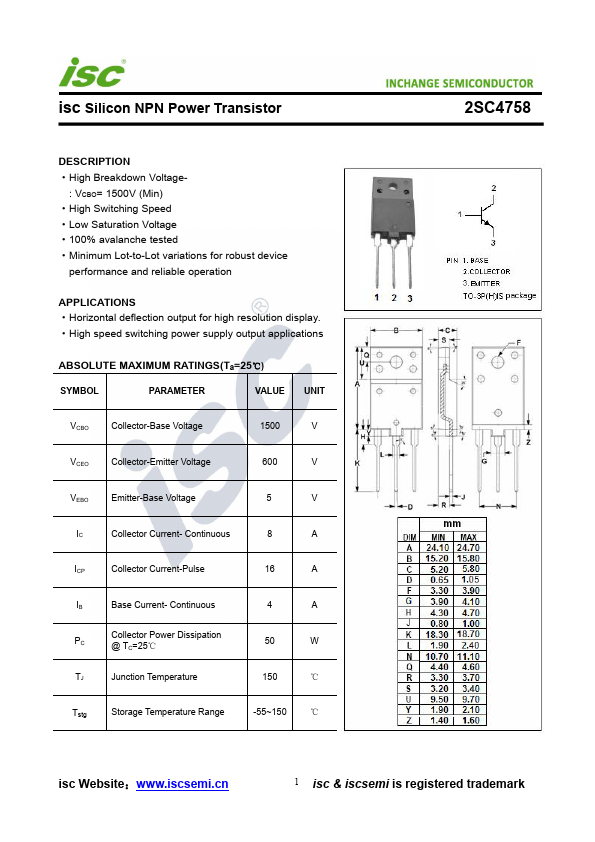

INCHANGE Semiconductor isc Product Specification isc Silicon NPN Power Transistor 2SC4758 DESCRIPTION ·High Breakdown Voltage: VCBO= 1500V (Min) ·High Switching Speed ·Low Saturation Voltage APPLICATIONS ·Horizontal deflection output for high resolution display. ·High speed switching power supply output applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage VCEO Collector-Emitter Voltage VEBO Emitter-Base Voltage IC Collector Current- Continuous w w s c s i . w 1500 V 600 V 5 V 8 A 16 A 4 A n c . i m e ICP Collector Current-Pulse IB B Base Current- Continuous Collector Power Dissipation @ TC=25℃ Junction Temperature PC 50 W TJ 150 ℃ Tstg Storage Temperature Range -55~150 ℃ isc Website：www.iscsemi.cn www.
