This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | BCX68-10 |
|---|---|
| Datasheet | BCX68-10 BCX68 Datasheet (PDF) |
| File Size | 514.08 KB |
| Manufacturer | Infineon |
| Description | NPN Silicon AF Transistors |
|
|

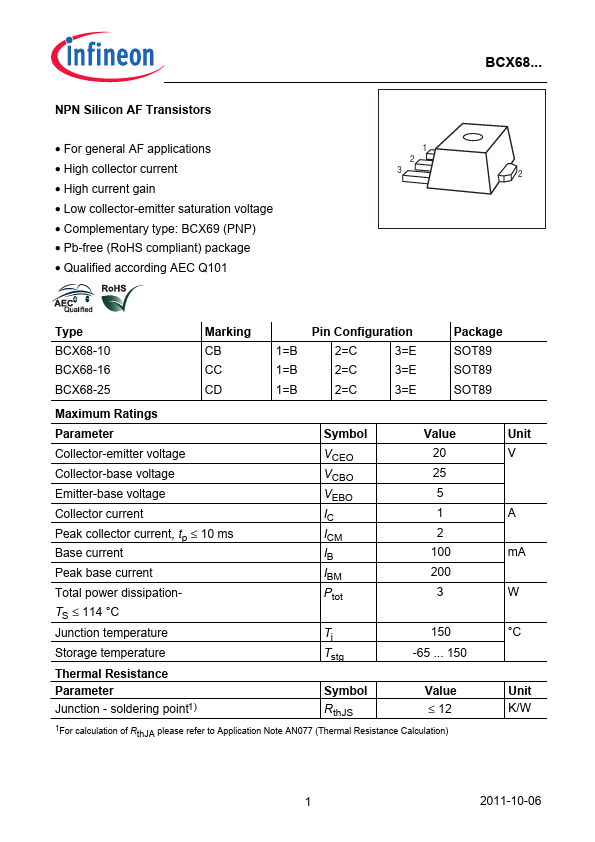

NPN Silicon AF Transistors For general AF applications High collector current High current gain Low collector-emitter saturation voltage plementary type: BCX69 (PNP) Pb-free (RoHS pliant) package Qualified according AEC Q101 BCX68... 150 Parameter Junction - soldering point1) Symbol RthJS Value ≤ 12 1For calculation of RthJA please refer to Application Note AN077 ( Calculation) Unit V A mA W °C Unit K/W 1 2011-10-06...
| Part Number | Description |
|---|---|
| BCX68-16 | NPN Silicon AF Transistors |
| BCX68-25 | NPN Silicon AF Transistors |
| BCX68 | NPN Silicon AF Transistors |
| BCX69 | PNP Silicon AF Transistors |
| BCX69-10 | PNP Silicon AF Transistors |
| BCX69-16 | PNP Silicon AF Transistors |
| BCX69-25 | PNP Silicon AF Transistors |
| BCX51 | PNP Silicon AF Transistors |
| BCX52 | PNP Silicon AF Transistors |
| BCX53 | PNP Silicon AF Transistors |
