This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | BCX69-10 |
|---|---|
| Datasheet | BCX69-10 BCX69 Datasheet (PDF) |
| File Size | 523.60 KB |
| Manufacturer | Infineon |
| Description | PNP Silicon AF Transistors |
|
|

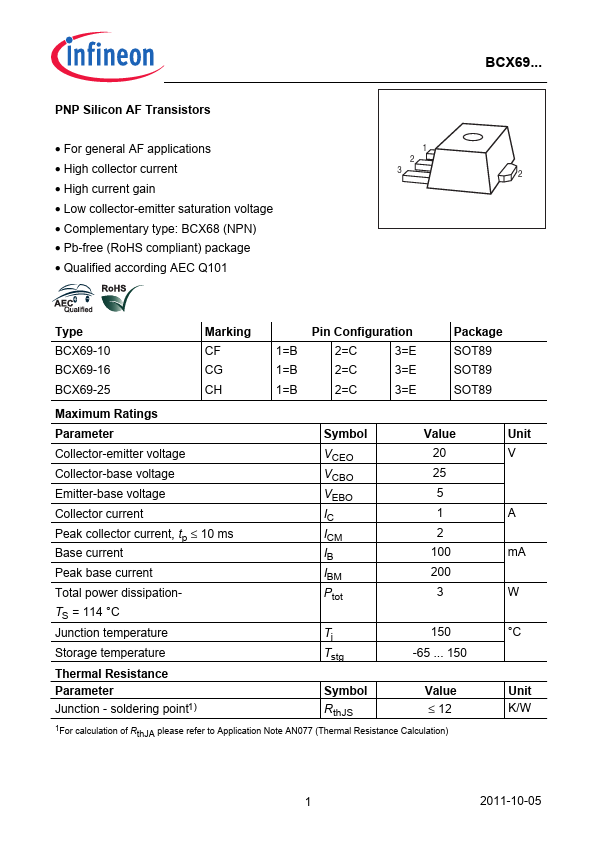

PNP Silicon AF Transistors For general AF applications High collector current High current gain Low collector-emitter saturation voltage plementary type: BCX68 (NPN) Pb-free (RoHS pliant) package Qualified according AEC Q101 BCX69... 150 Parameter Junction - soldering point1) Symbol RthJS Value ≤ 12 1For calculation of RthJA please refer to Application Note AN077 ( Calculation) Unit V A mA W °C Unit K/W 1 2011-10-05...
