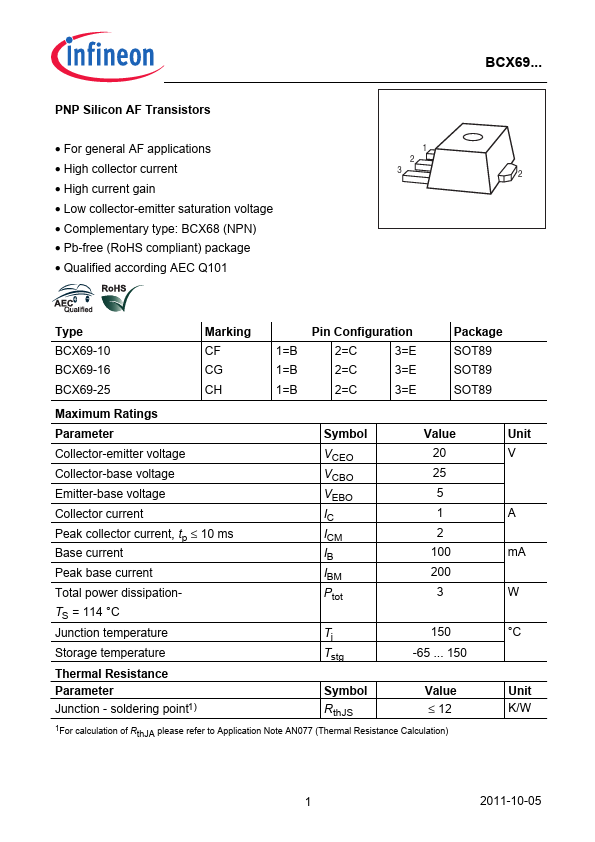

BCX69-25
PNP Silicon AF Transistors
- For general AF applications
- High collector current
- High current gain
- Low collector-emitter saturation voltage
- plementary type: BCX68 (NPN)
- Pb-free (Ro HS pliant) package
- Qualified according AEC Q101
BCX69...
Type BCX69-10 BCX69-16 BCX69-25
Marking CF CG CH
Pin Configuration
1=B
2=C
3=E
1=B
2=C
3=E
1=B
2=C
3=E
Package SOT89 SOT89 SOT89
Maximum Ratings
Parameter
Symbol
Value
Collector-emitter voltage Collector-base voltage Emitter-base voltage Collector current Peak collector current, tp ≤ 10 ms Base current Peak base current Total power dissipation TS = 114 °C Junction temperature Storage temperature
VCEO VCBO VEBO IC ICM IB IBM Ptot
Tj Tstg
20 25 5 1 2 100 200 3
150 -65 ... 150
Thermal Resistance Parameter Junction
- soldering point1)
Symbol Rth JS
Value ≤ 12

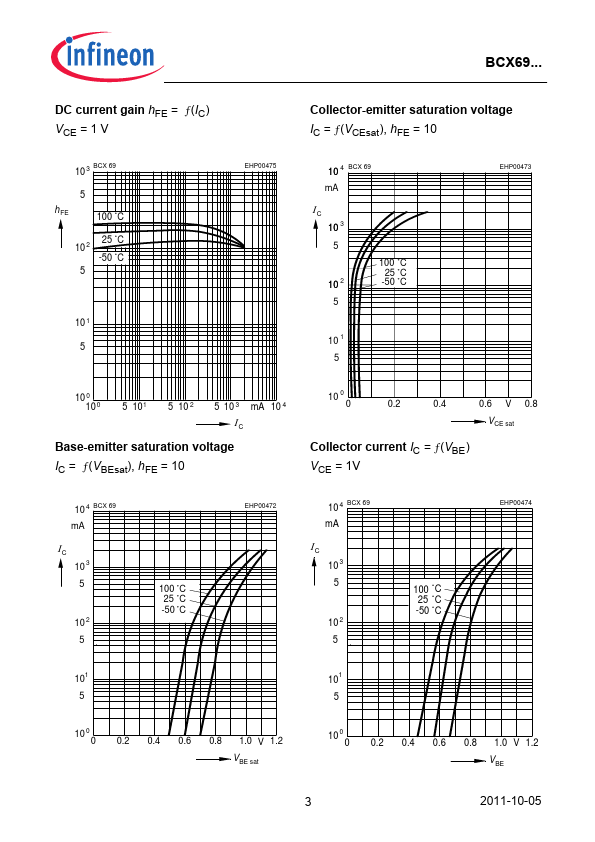

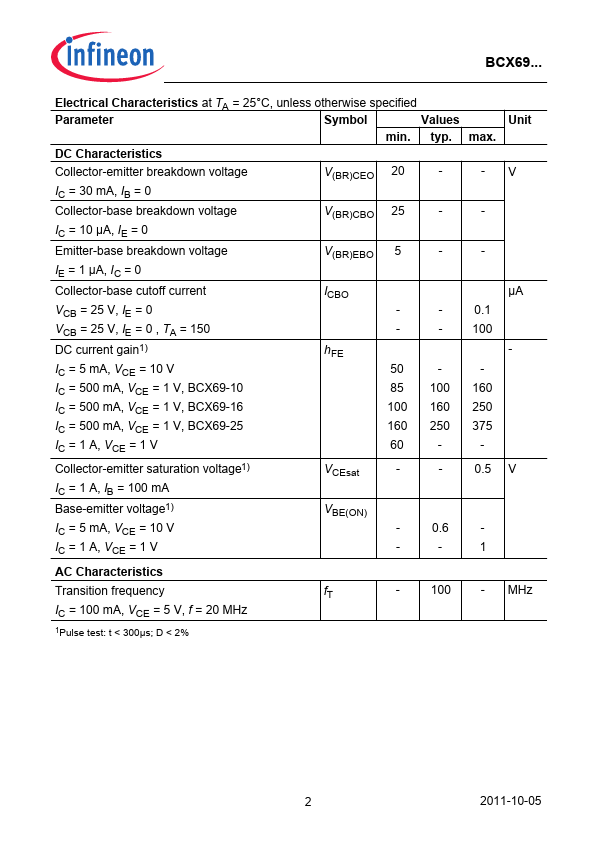

1For calculation of Rth JA please refer to Application Note AN077 (Thermal Resistance...
