TLE4945-2L - Uni- and Bipolar Hall IC Switches

Description

The circuit includes Hall generator, amplifier and Schmitt-Trigger on one chip.

The internal reference provides the supply voltage for the components.

A magnetic field perpendicular to the chip surface induces a voltage at the hall probe.

Features

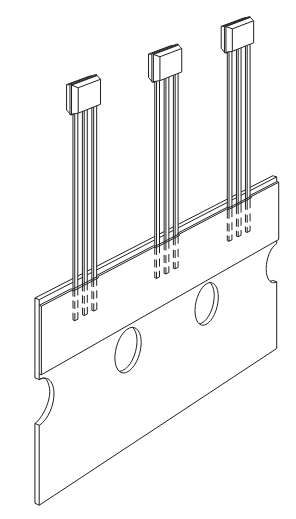

Temperature compensated magnetic performance Digital output signal For unipolar and alternating magnetic fields Large temperature range Protection against reversed polarity Output protection against electrical disturbances P-SSO-3-2 Type TLE 4905 L TLE 4935 L TLE 4935-2 L TLE 4945 L TLE 4945-2L Marking 05 L 35 L 35 2 45 L 45 2 Ordering Code Q67006-A9120 Q67006-A9112 Q67006-A9143 Q67006-A9163 Q62705-K441 Package P-SSO-3-2 P-SSO-3-2 P.

Datasheet Details

Part number	TLE4945-2L
Manufacturer	Infineon Technologies AG
File Size	272.32 KB
Description	Uni- and Bipolar Hall IC Switches
Datasheet	TLE4945-2L Datasheet
Additional preview pages of the TLE4945-2L datasheet.
