Datasheet Summary

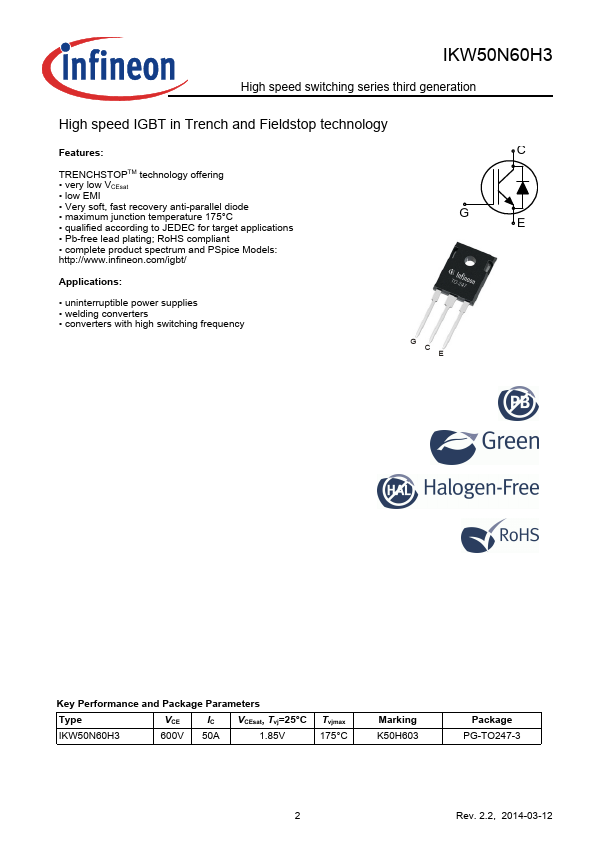

IKW50N60H3
Highspeedswitchingseriesthirdgeneration
HighspeedIGBTinTrenchandFieldstoptechnology
Features
:
TRENCHSTOPTMtechnologyoffering
- verylowVCEsat
- lowEMI
- Verysoft,fastrecoveryanti-paralleldiode
- maximumjunctiontemperature175°C
- qualifiedaccordingtoJEDECfortargetapplications
- Pb-freeleadplating;RoHSpliant
- pleteproductspectrumandPSpiceModels: http://.infineon./igbt/
Applications:
- uninterruptiblepowersupplies
- weldingconverters
- converterswithhighswitchingfrequency
KeyPerformanceandPackageParameters
Type
VCEsat,Tvj=25°C
IKW50N60H3
600V 50A
1.85V
Tvjmax 175°C
Marking...
