BAR63-02W
BAR63-02W is Silicon PIN Diodes manufactured by Infineon.
- Part of the BAR63-02L comparator family.
- Part of the BAR63-02L comparator family.

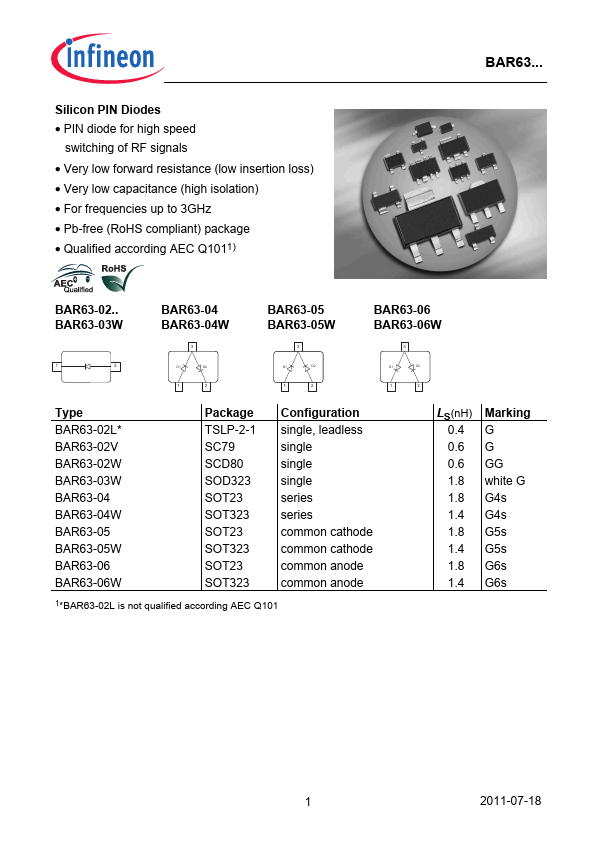

Silicon PIN Diodes
- PIN diode for high speed switching of RF signals
- Very low forward resistance (low insertion loss)
- Very low capacitance (high isolation)
- For frequencies up to 3GHz
- Pb-free (RoHS pliant) package
- Qualified according AEC Q1011)
BAR63...
BAR63-02.. BAR63-03W
BAR63-04 BAR63-04W
BAR63-05 BAR63-05W
BAR63-06 BAR63-06W
!
!
!
,
,
,
,
,
,
Type BAR63-02L- BAR63-02V BAR63-02W BAR63-03W BAR63-04 BAR63-04W BAR63-05 BAR63-05W BAR63-06 BAR63-06W
Package TSLP-2-1 SC79 SCD80 SOD323 SOT23 SOT323 SOT23 SOT323 SOT23 SOT323
Configuration single, leadless single single single series series mon cathode mon cathode mon anode mon anode
