This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | BAR63-04 |
|---|---|
| Datasheet | BAR63-04 BAR63-02L Datasheet (PDF) |
| File Size | 1.02 MB |
| Manufacturer | Infineon |
| Description | Silicon PIN Diodes |
|
|

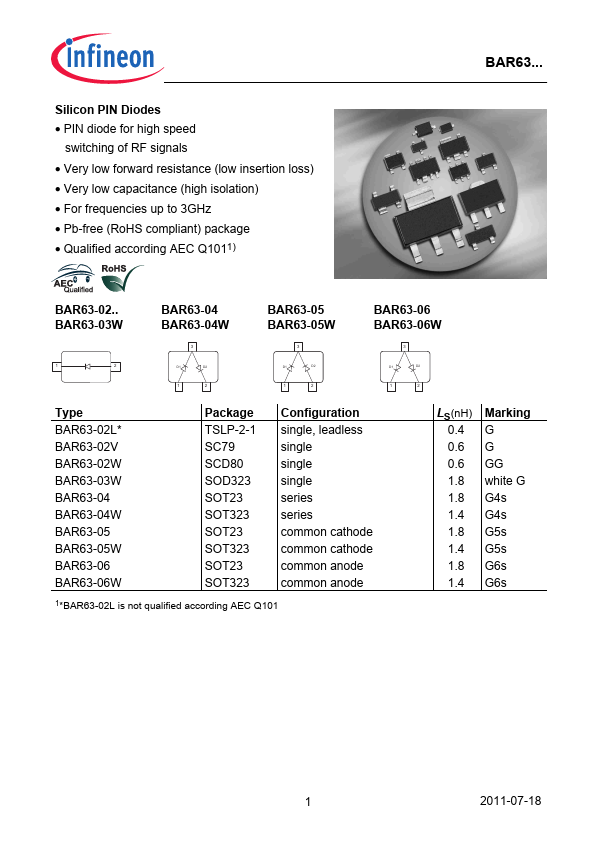

Silicon PIN Diodes PIN diode for high speed switching of RF signals Very low forward resistance (low insertion loss) Very low capacitance (high isolation) For frequencies up to 3GHz Pb-free (RoHS pliant) package Qualified according AEC Q1011) BAR63... BAR63-03W BAR63-04 BAR63-04W BAR63-05 BAR63-05W BAR63-06 BAR63-06W ! 150 Value ≤ 125 ≤ 140 ≤ 155 ≤ 380 ≤ 180 ≤ 180 Unit V mA mW °C Unit K/W at TA = 25°C, unless...
