| Part number | BCW60 |
|---|---|
| Datasheet | BCW60-Infineon.pdf |
| File Size | 99.99 KB |
| Manufacturer | Infineon |
| Description | NPN Silicon AF Transistors |
|
|

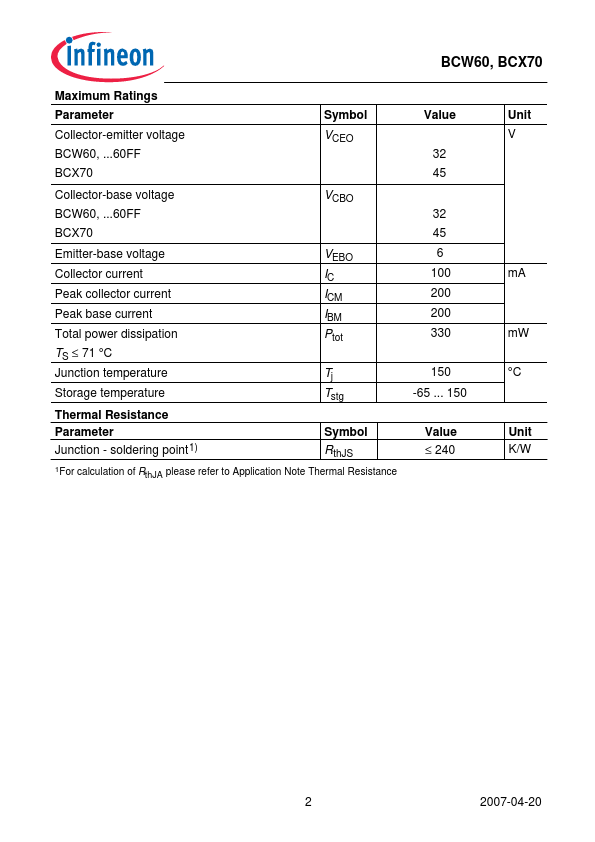

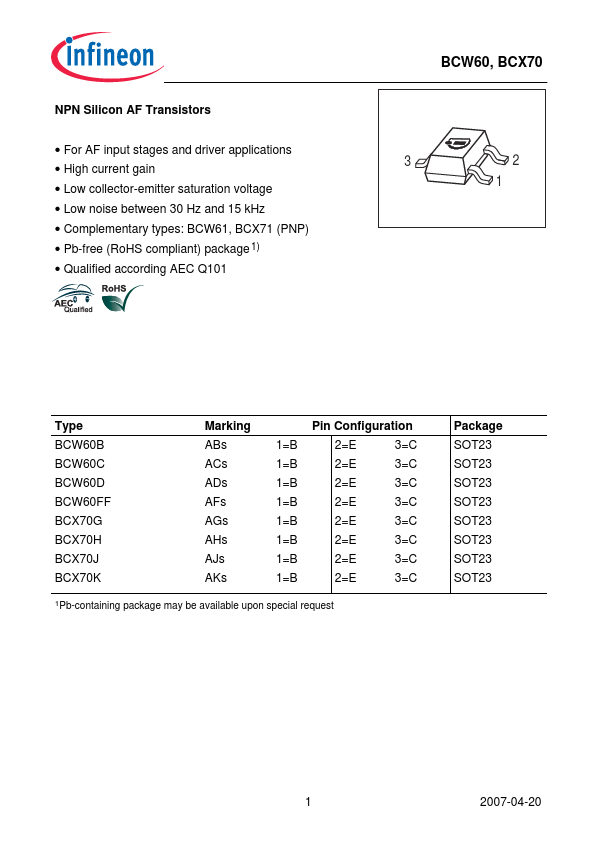

NPN Silicon AF Transistors For AF input stages and driver applications High current gain Low collector-emitter saturation voltage Low noise between 30 Hz and 15 kHz plementary types: 150 Value ≤ 240 Unit V mA mW °C Unit K/W 2 2007-04-20 BCW60, BCX70 at TA = 25°C, unless otherwise specified Parameter Symbol Values Unit min. G IC = 10 µA, VCE = 5 V, hFE-grp.
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
 |
BCW60 | NPN general purpose transistors | NXP |
 |
BCW60 | NPN Silicon AF Transistors | Siemens Semiconductor Group |
 |
BCW60 | Small Signal Transistors | Vishay |
 |
BCW60 | NPN General Purpose Amplifier | GME |
 |
BCW60 | NPN Silicon Epitaxial Planar Transistors | SEMTECH |
| Part Number | Description |
|---|---|
| BCW60B | NPN Silicon AF Transistors |
| BCW60C | NPN Silicon AF Transistors |
| BCW60D | NPN Silicon AF Transistors |
| BCW60FF | NPN Silicon AF Transistors |
| BCW61A | PNP Silicon AF Transistors |
| BCW61B | PNP Transistor |
| BCW61C | PNP Silicon AF Transistors |
| BCW61D | PNP Silicon AF Transistors |
| BCW66K | NPN Silicon AF Transistors |
| BCW66KF | NPN Silicon AF Transistors |
