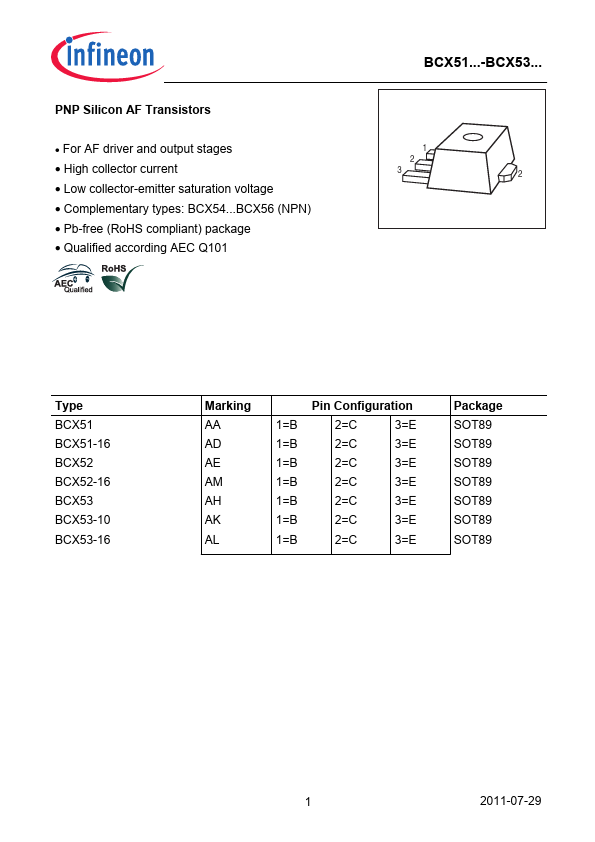

BCX53-10
PNP Silicon AF Transistors
- For AF driver and output stages
- High collector current
- Low collector-emitter saturation voltage
- plementary types: BCX54...BCX56 (NPN)
- Pb-free (Ro HS pliant) package
- Qualified according AEC Q101
BCX51...-BCX53...
Type BCX51 BCX51-16 BCX52 BCX52-16 BCX53 BCX53-10 BCX53-16
Marking AA AD AE AM AH AK AL
Pin Configuration
1=B
2=C
3=E
1=B
2=C
3=E
1=B
2=C
3=E
1=B
2=C
3=E
1=B
2=C
3=E
1=B
2=C
3=E
1=B
2=C
3=E
Package SOT89 SOT89 SOT89 SOT89 SOT89 SOT89 SOT89
2011-07-29
BCX51...-BCX53......
