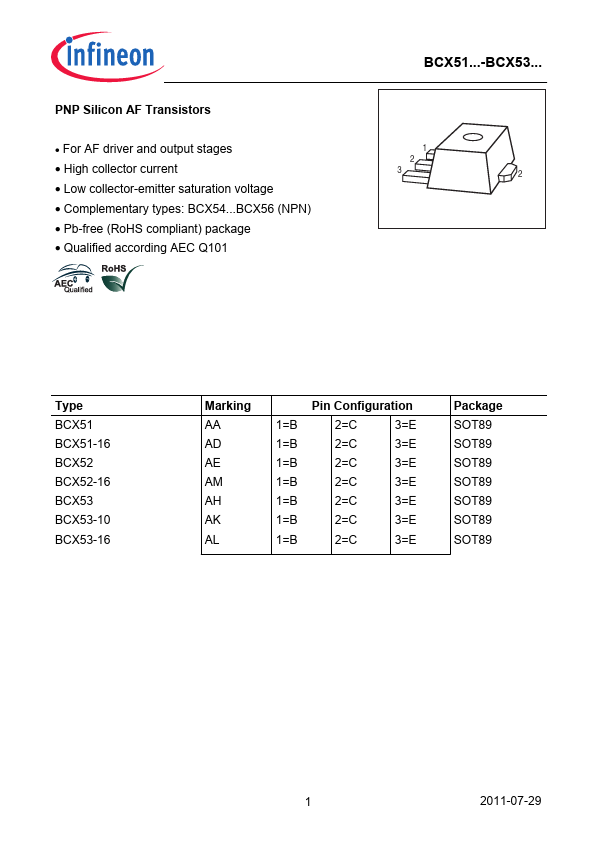

BCX53-16 Overview
PNP Silicon AF Transistors For AF driver and output stages High collector current Low collector-emitter saturation voltage plementary types: BCX54...BCX56 (NPN) Pb-free (RoHS pliant) package Qualified according AEC Q101 BCX51...-BCX53... at TA = 25°C, unless otherwise specified Parameter Symbol Values Unit min.
