Infineon Technologies BGT24MTR12
The BGT24MTR12 is a Silicon Germanium MMIC for signal generation and reception, operating from 24.0 to 24.25 GHz. It is based on a 24 GHz fundamental voltage controlled oscillator. The main RF output delivers typ.| Part No. | BGT24MTR12 |
|---|---|
| Datasheet | BGT24MTR12 Download |
| Manufacturer |  Infineon Technologies |
| Description | Silicon Germanium 24GHz Transceiver MMIC |
| Buy | Stock & Price |

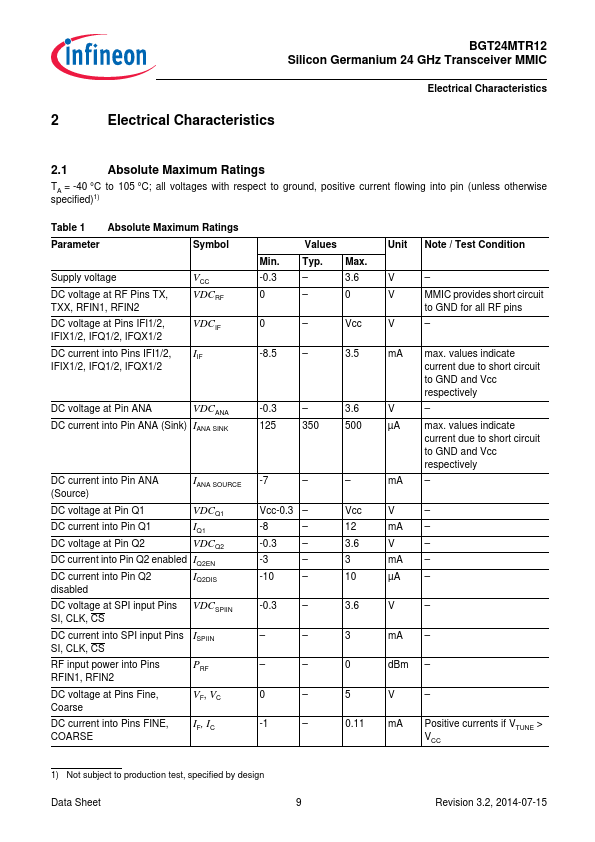

FEATURES
● 24 GHz transceiver MMIC with one transmitter and two receiver units● Fully integrated low phase noise VCO
● Switchable prescaler with 1.5 GHz and 23 kHz output
● On chip power and temperature sensors
● Gilbert based homodyne quadrature receiver
● Single ended RF input terminals
● Low noise figure NFSSB: 12 dB
● High conversion gain: 26 dB
● High 1 dB input compression point: -12 dBm
● Single supply voltage 3.3 V
● Power consumption 690 mW in continuous operating mode
● 200 GHz bipolar SiGe:C technology b7hf200
● Fully ESD protected device
● VQFN-32-9 leadless plastic package incl. LTI feature
● Pb-free (RoHS compliant) package

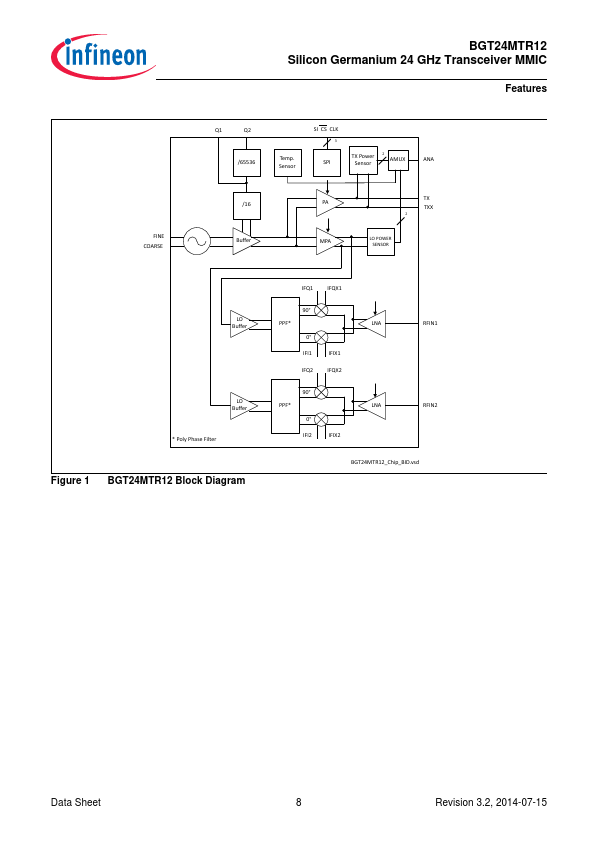

DESCRIPTION
A switchable frequency prescaler is included with output frequencies of 1.5 GHz and 23 kHz. The main RF output delivers typ. 11 dBm signal power to feed an antenna. A RC polyphase filter (PPF) is used for LO quadrature phase generation of the homodyne quadrature downconversion mixer. Output power sensors as well as a temperature sensor are implemented for monitoring purposes.
