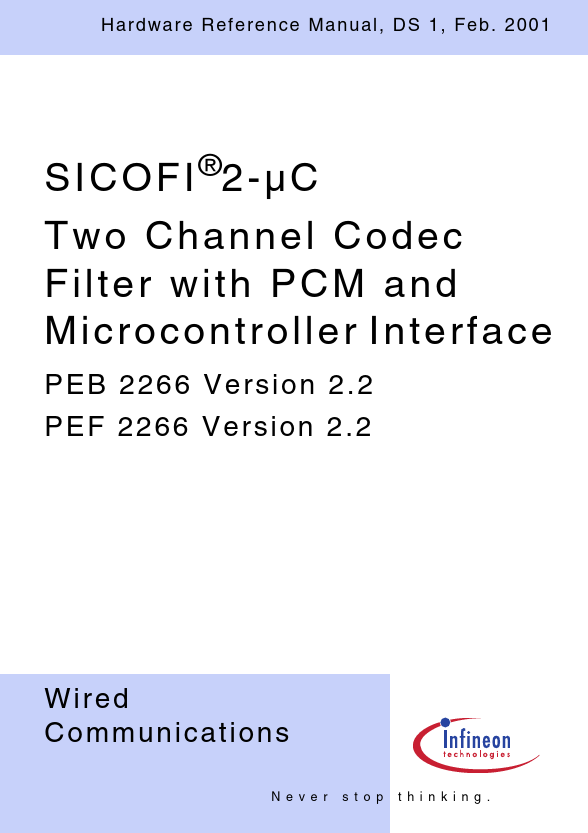

Infineon Technologies PEB2266
The two-channel codec filter PEB 2266 SICOFI®2-µC is built around a central DSP-core which provides independent filter structures for all channels. Its analog I/O pins are used to connect to external subscriber line interface circuits (SLICs).| Part No. | PEB2266 |
|---|---|
| Datasheet | PEB2266 Download |
| Manufacturer |  Infineon Technologies |
| Description | 2-Channel Codec Filter |
| Buy | Stock & Price |
FEATURES
● Two-channel single chip codec with digital filters● High analog driving capability (300 Ω, 50 pF) for direct driving of transformers
● Digital Signal Processing (DSP) technique
● Programmable digital filters to adapt transmission behavior, especially for: – AC impedance matching P-MQFP-64 – Transhybrid balancing – Frequency response – Signal levels – A/µ-Law compression and expansion
● Fulfills international (e.g. ITU-T Q.552, G.712) and country-specific requirements
● High performance ADC and DAC for excellent linearity and dynamic gain
● Programmable Analog Interface to electronic SLICs or transformer solutions
● Seven SLIC-signaling I/O pins per channel with programmable debouncing
● Two PCM Highways accessible by on-chip PCM Interface with Programmable time slot assignment and variable data rates from 128 kbit/s to 8 Mbit/s
● Easy to use 4-pin Serial Microcontroller Interface (SPI compatible) for read/write access
● Single supply voltage (5 V)
● Advanced low-power mixed...
