SKL87374A
SKL87374A is Bidi Transceiver Optical Module manufactured by Infineon.
- Part of the SKL87374x comparator family.
- Part of the SKL87374x comparator family.

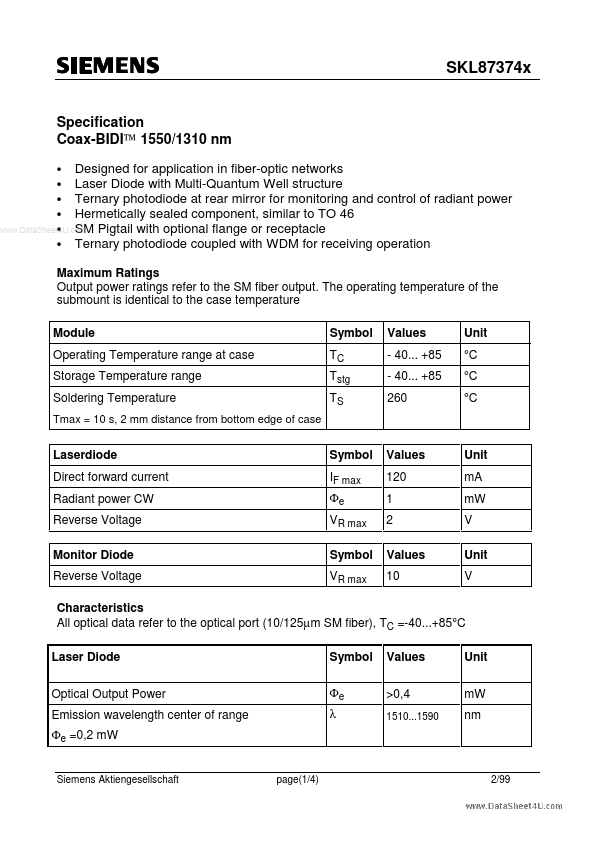

SKL87374x
Specification Coax-BIDI™ 1550/1310 nm
- Designed for application in fiber-optic networks
- Laser Diode with Multi-Quantum Well structure
- Ternary photodiode at rear mirror for monitoring and control of radiant power
- Hermetically sealed ponent, similar to TO 46 SM .Data Sheet- 4U. Pigtail with optional flange or receptacle
- Ternary photodiode coupled with WDM for receiving operation
Maximum Ratings Output power ratings refer to the SM fiber output. The operating temperature of the submount is identical to the case temperature
Module
Symbol Values
Operating Temperature range at case
Storage Temperature range
Tstg
Soldering Temperature
Tmax = 10 s, 2 mm distance from bottom edge of case
- 40... +85
- 40... +85 260
Unit °C °C °C
Laserdiode Direct forward current Radiant power CW Reverse Voltage
Symbol Values
IF max 120
Φe
VR max 2
Unit m A m W V
Monitor Diode Reverse Voltage
Symbol Values VR max 10
Unit V
Characteristics All optical data refer to the optical port (10/125µm SM fiber), TC =-40...+85°C
Laser Diode
Symbol Values
Unit
Optical Output Power Emission wavelength center of range Φe =0,2 m W
Φe
>0,4 m W
λ
1510...1590 nm
Siemens Aktiengesellschaft...
