TLE92464ED - Four channel low-side solenoid driver

Datasheet Summary

Description

The TLE92464ED is a flexible, monolithic solenoid driver IC designed for the control of linear solenoids in automatic transmissions, electronic stability control and active suspension applications.

Features

  • Four independent low side channels with integrated MOSFETs (RDSon = 115 mΩ).

📥 Download Datasheet

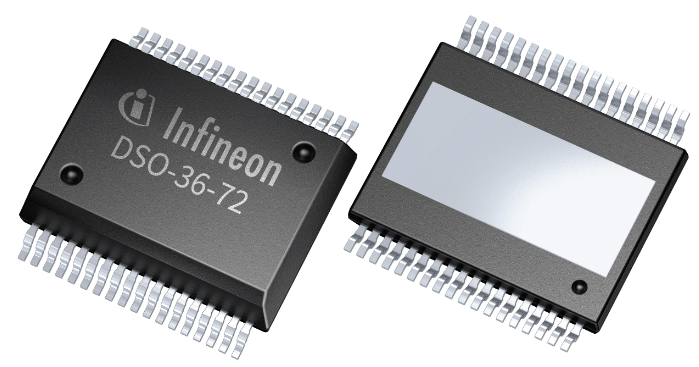

Datasheet preview – TLE92464ED

Datasheet Details

Part number TLE92464ED
Manufacturer Infineon
File Size 3.49 MB
Description Four channel low-side solenoid driver
Datasheet download datasheet TLE92464ED Datasheet
Additional preview pages of the TLE92464ED datasheet.

📁 Similar Datasheet

  • TLE9201SG - 6A H-Bridge (Infineon Technologies)
  • TLE9266-2QX - System Basis Chip (Infineon Technologies)
  • TLE9266QX - System Basis Chip (Infineon Technologies)
  • TLE9832 - Microcontroller (Infineon Technologies)
  • TLE9834QX - Microcontroller (Infineon Technologies)
  • TLE9835QX - Microcontroller (Infineon Technologies)
  • TLE2021 - EXCALIBUR HIGH-SPEED LOW-POWER PRECISION OPERATIONAL AMPLIFIER (Texas Instruments)
  • TLE2021-EP - EXCALIBUR HIGH-SPEED LOW-POWER PRECISION OPERATIONAL AMPLIFIER (Texas Instruments)
  • TLE2021-Q1 - EXCALIBUR HIGH-SPEED LOW-POWER PRECISION OPERATIONAL AMPLIFIER (Texas Instruments)
  • TLE2021A - EXCALIBUR HIGH-SPEED LOW-POWER PRECISION OPERATIONAL AMPLIFIER (Texas Instruments)
Other Datasheets by Infineon

Full PDF Text Transcription

Click to expand full text
TLE92464ED Four channel low-side solenoid driver IC Quality Requirement Category: Automotive Features • Four independent low side channels with integrated MOSFETs (RDSon = 115 mΩ) • <1% current control accuracy • Programmable setpoint from 0 mA to 1.5 A • Load current including dither 1.8 A • Current in parallel channel mode 2.7 A • Integrated dither generator with programmable amplitude, frequency and waveform • 15 bit current setpoint resolution • Integrated sense resistor RSHUNT = 140 mΩ • Excellent immunity to large load supply voltage changes • Operation down to 3.
