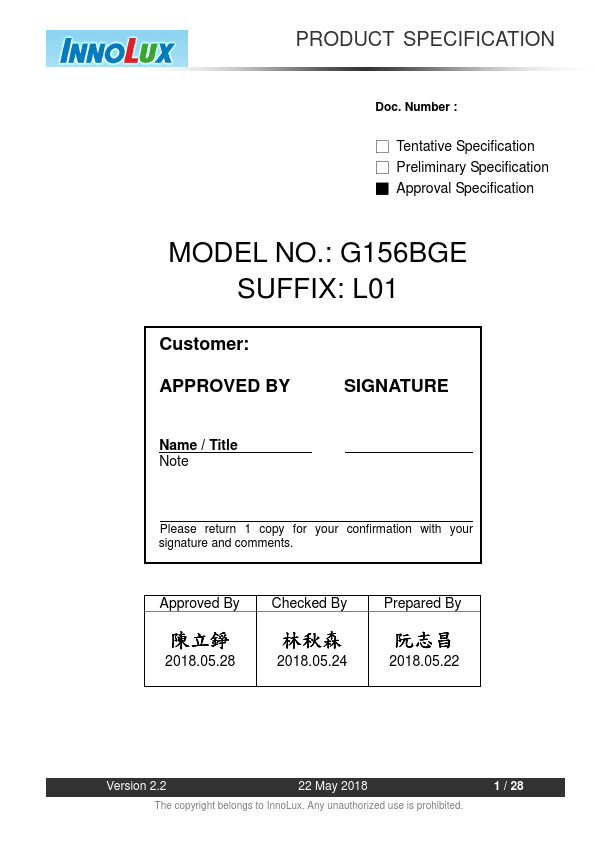

G156BGE-L01
DESCRIPTION

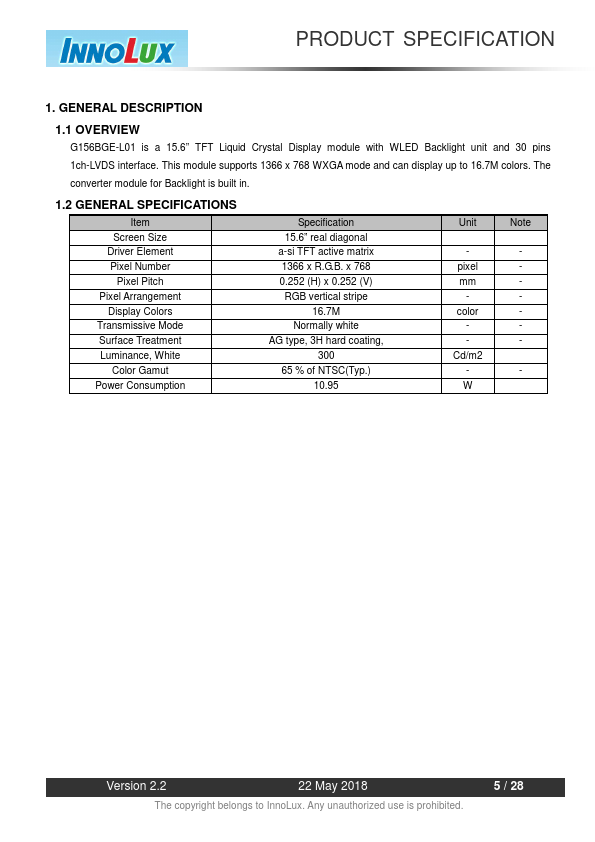

1.1 OVERVIEW
G156BGE-L01 is a 15.6” TFT Liquid Crystal Display module with WLED Backlight unit and 30 pins 1ch-LVDS interface. This module supports 1366 x 768 WXGA mode and can display up to 16.7M colors. The converter module for Backlight is built in.
1.2 GENERAL SPECIFICATIONS
Item Screen Size Driver Element Pixel Number Pixel Pitch Pixel Arrangement Display Colors Transmissive Mode Surface Treatment Luminance, White Color Gamut Power Consumption
Specification 15.6” real diagonal a-si TFT active matrix 1366 x R.G.B. x 768 0.252 (H) x 0.252 (V) RGB vertical stripe
16.7M Normally white AG type, 3H hard coating,
300 65 % of NTSC(Typ.)
Unit pixel mm color
Cd/m2 W
Note
- -
Version 2.2
22 May 2018
The copyright belongs to Inno Lux. Any unauthorized use is prohibited.
5 / 28
PRODUCT SPECIFICATION

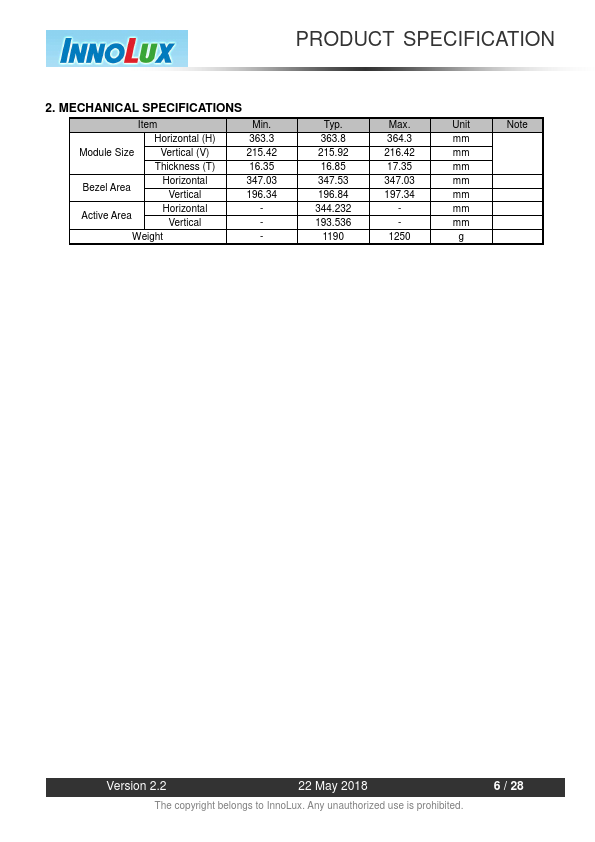

2. MECHANICAL SPECIFICATIONS
Item
Min.
Typ.
Max.
Unit
Note
Horizontal (H)
364.3 mm
Module Size
Vertical (V)
216.42...
