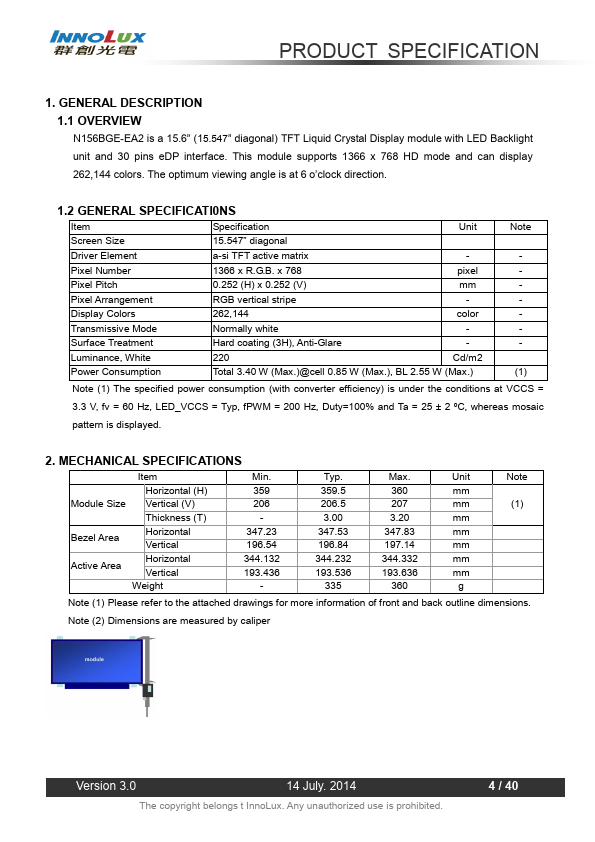

N156BGE-EA2
DESCRIPTION
1.1 OVERVIEW
N156BGE-EA2 is a 15.6” (15.547” diagonal) TFT Liquid Crystal Display module with LED Backlight unit and 30 pins e DP interface. This module supports 1366 x 768 HD mode and can display 262,144 colors. The optimum viewing angle is at 6 o’clock direction.
1.2 GENERAL SPECIFICATI0NS
Item
Specification
Unit
Screen Size
15.547” diagonal
Driver Element a-si TFT active matrix
- Pixel Number
1366 x R.G.B. x 768 pixel
Pixel Pitch
0.252 (H) x 0.252 (V) mm
Pixel Arrangement
RGB vertical stripe
- Display Colors
262,144 color
Transmissive Mode
Normally white
- Surface Treatment
Hard coating (3H), Anti-Glare
- Luminance, White
Cd/m2
Power Consumption
Total 3.40 W (Max.)@cell 0.85 W (Max.), BL 2.55 W (Max.)
Note
- (1)
Note (1) The specified power consumption (with converter efficiency) is under the conditions at VCCS =
3.3 V, fv = 60 Hz, LED_VCCS = Typ, f PWM = 200 Hz, Duty=100% and Ta = 25 ± 2 ºC, whereas mosaic pattern is displayed.
