ISP1507 Datasheet High Performance Bluetooth 5 Ready Low Energy Module

Manufacturer: Insight SiP

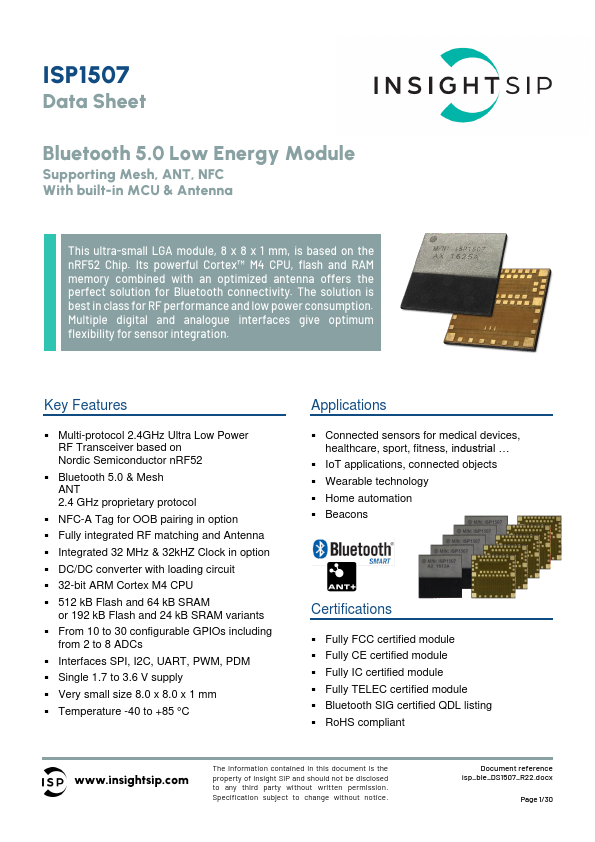

Overview: ISP1507 Data Sheet Bluetooth 5.0 Low Energy Module Supporting Mesh, ANT, NFC With built-in MCU & Antenna This ultra-small LGA module, 8 x 8 x 1 mm, is based on the nRF52 Chip. Its powerful Cortex™ M4 CPU, flash and RAM memory bined with an optimized antenna offers the perfect solution for Bluetooth connectivity. The solution is best in class for RF performance and low power consumption. Multiple digital and analogue interfaces give optimum flexibility for sensor integration.

Datasheet Details

Part number ISP1507
Manufacturer Insight SiP
File Size 2.29 MB
Description High Performance Bluetooth 5 Ready Low Energy Module
Datasheet ISP1507-InsightSiP.pdf

Key Features

  • Multi-protocol 2.4GHz Ultra Low Power RF Transceiver based on Nordic Semiconductor nRF52.
  • Bluetooth 5.0 & Mesh ANT 2.4 GHz proprietary protocol.
  • NFC-A Tag for OOB pairing in option.
  • Fully integrated RF matching and Antenna.
  • Integrated 32 MHz & 32kHZ Clock in option.
  • DC/DC converter with loading circuit.
  • 32-bit ARM Cortex M4 CPU.
  • 512 kB Flash and 64 kB SRAM or 192 kB Flash and 24 kB SRAM variants.
  • From 10 to 30 configurable GPIOs including from 2 to 8.
