ISP1907 - Built-in Antenna Bluetooth 5.1 Module

Description

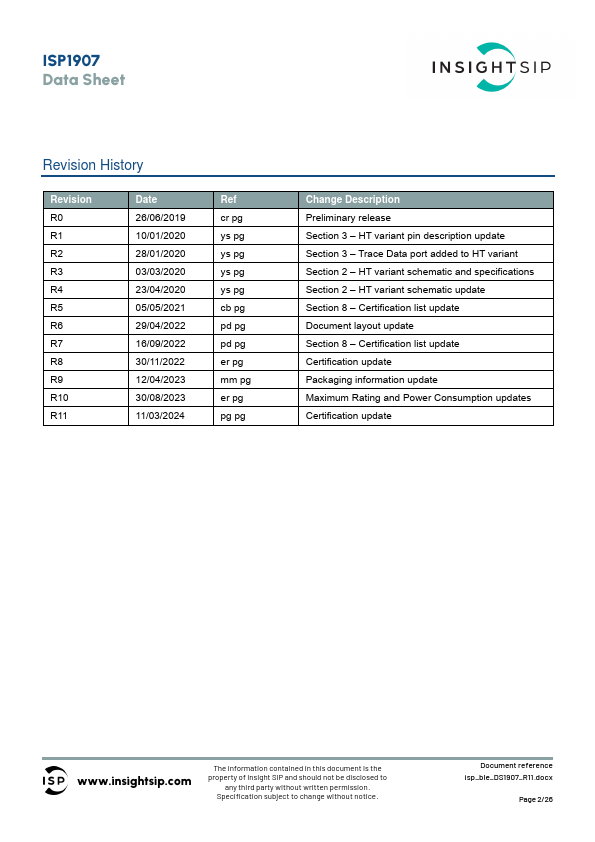

Preliminary release Section 3 HT variant pin description update Section 3 Trace Data port added to HT variant Section 2 HT variant schematic and specifications Section 2 HT variant schematic update Section 8 Certification list update Document layout

Features

  • Bluetooth 5.1 long-range direction-finding.
  • Thread / Zigbee / ANT+ stacks available.
  • Multi-protocol 2.4GHz low energy RF transceiver from nRF52 Nordic Semi family.
  • 32-bit ARM Cortex M4 CPU.
  • Many analog and digital IOs including ADC, SPI, UART, PDM, I2C.
  • Fully integrated RF matching and Antenna.
  • Embedded 32 MHz Radio & 32 kHz Synchro.
  • DC/DC converter including inductor.
  • Pin compatibility with iSP15, 18 & 19 series.
  • Single 1.7 to 3.6 V supply.

📥 Download Datasheet

Datasheet preview – ISP1907

Datasheet Details

Part number ISP1907
Manufacturer Insight SiP
File Size 1.90 MB
Description Built-in Antenna Bluetooth 5.1 Module
Datasheet download datasheet ISP1907 Datasheet
Additional preview pages of the ISP1907 datasheet.

📁 Similar Datasheet

  • ISP1016E - High-Density Programmable Logic (Lattice Semiconductor)
  • ISP1032E - High-Density Programmable Logic (Lattice Semiconductor)
  • ISP1032E - High-Density Programmable Logic (Lattice Semiconductor)
  • ISP1040B - Intelligent SCSI Processor (QLogic Corporation)
  • ISP1040B - SCSI I/O Processor (Qlogic)
  • ISP1040C - Intelligent SCSI Processor (QLogic Corporation)
  • ISP1048E - High-Density Programmable Logic (Lattice Semiconductor)
  • ISP1102 - Advanced Universal Serial Bus transceiver (NXP)
  • ISP1102BS - Advanced Universal Serial Bus transceiver (NXP)
  • ISP1102W - Advanced Universal Serial Bus transceiver (NXP)
Other Datasheets by Insight SiP
  • ISP1302 - Lite V4.2 Bluetooth Low Energy Module
  • ISP1303 - High Performance Bluetooth V4.2 & ANT Low Energy Module
  • ISP130301 - Bluetooth Low Energy Module
  • ISP1507 - High Performance Bluetooth 5 Ready Low Energy Module
  • ISP1510 - Smart Ultra Wide Band and Bluetooth Low Energy Module
  • ISP1807 - Built-in Antenna Low Energy Module
  • ISP0912 - Bluetooth Low Energy Module
  • ISP091201 - Bluetooth Low Energy Module

Full PDF Text Transcription

Click to expand full text

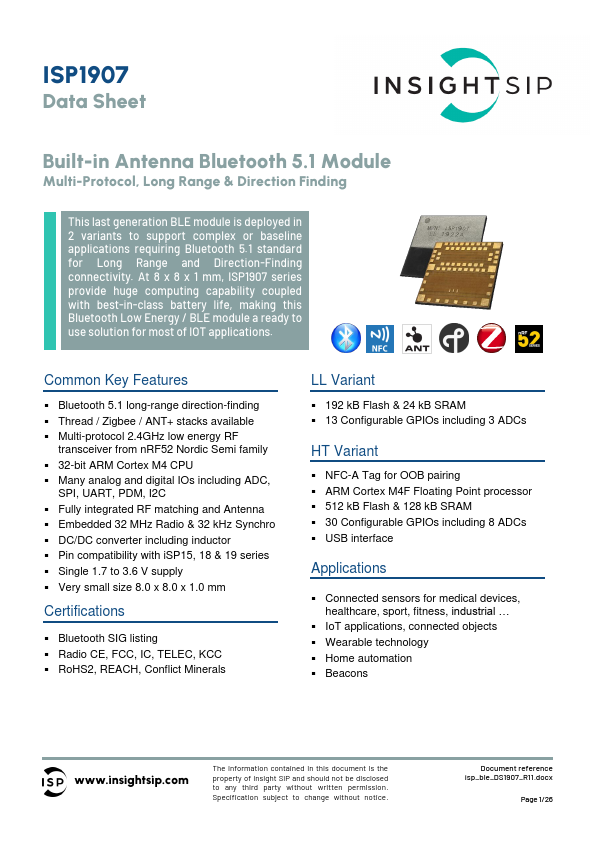

ISP1907 Data Sheet Built-in Antenna Bluetooth 5.1 Module Multi-Protocol, Long Range & Direction Finding This last generation BLE module is deployed in 2 variants to support complex or baseline applications requiring Bluetooth 5.1 standard for Long Range and Direction-Finding connectivity. At 8 x 8 x 1 mm, ISP1907 series provide huge computing capability coupled with best-in-class battery life, making this Bluetooth Low Energy / BLE module a ready to use solution for most of IOT applications. Common Key Features ▪ Bluetooth 5.1 long-range direction-finding ▪ Thread / Zigbee / ANT+ stacks available ▪ Multi-protocol 2.
