ISP3010 - Built-in Antennas Ultra-Wide Band and Bluetooth Low Energy Smart Module

General Description

4.

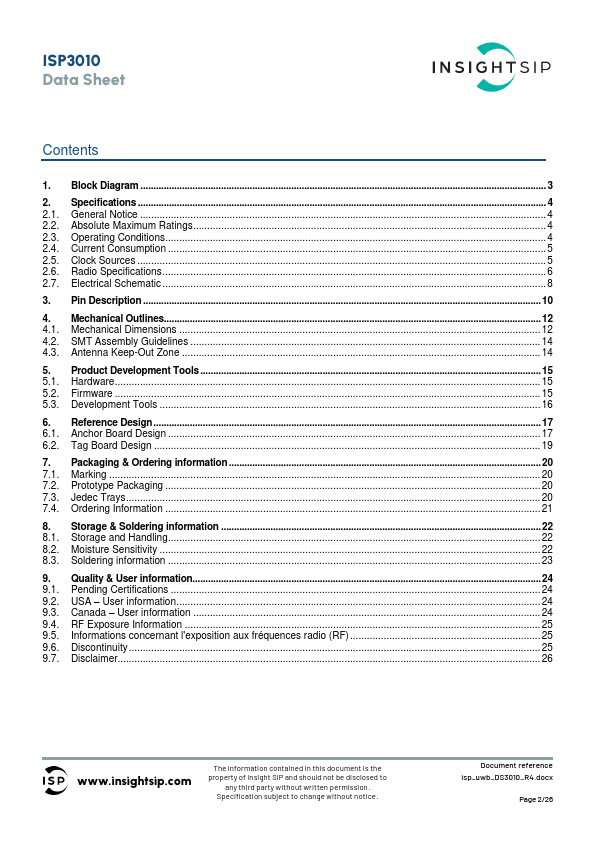

Mechanical Outlines 12 4.1.

Mechanical Dimensions 12 4.2.

Key Features

  • IEEE802.15.4-2011 UWB compliant.
  • Single Mode BLE 5 Ready.
  • NFC-A Tag for OOB pairing.
  • Spatial resolution better than 10 cm.
  • Fully integrated UWB & BLE matching and Antennas.
  • Integrated UWB 38.4 MHz and BLE 32 MHz & 32.768 kHz Clocks.
  • DC/DC converters.
  • UWB section based on DecaWave DW1000.
  • BLE section based on Nordic Semi nRF52.
  • UWB.

📥 Download Datasheet

Datasheet Details

Part number ISP3010
Manufacturer Insight SiP
File Size 1.73 MB
Description Built-in Antennas Ultra-Wide Band and Bluetooth Low Energy Smart Module
Datasheet download datasheet ISP3010 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ISP321-1 (ISP321-xx) HIGH DENSITY MOUNTING PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS ISOCOM COMPONENTS
ISP321-1-88XSM HIGH DENSITY MOUNTING PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS ETC
ISP321-1X (ISP321-xx) HIGH DENSITY MOUNTING PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS ISOCOM COMPONENTS
ISP321-2 (ISP321-xx) HIGH DENSITY MOUNTING PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS ISOCOM COMPONENTS
ISP321-2X (ISP321-xx) HIGH DENSITY MOUNTING PHOTOTRANSISTOR OPTICALLY COUPLED ISOLATORS ISOCOM COMPONENTS

Other Datasheets by Insight SiP

Part Number Description
ISP0912 Bluetooth Low Energy Module
ISP091201 Bluetooth Low Energy Module
ISP1302 Lite V4.2 Bluetooth Low Energy Module
ISP1303 High Performance Bluetooth V4.2 & ANT Low Energy Module
ISP130301 Bluetooth Low Energy Module

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

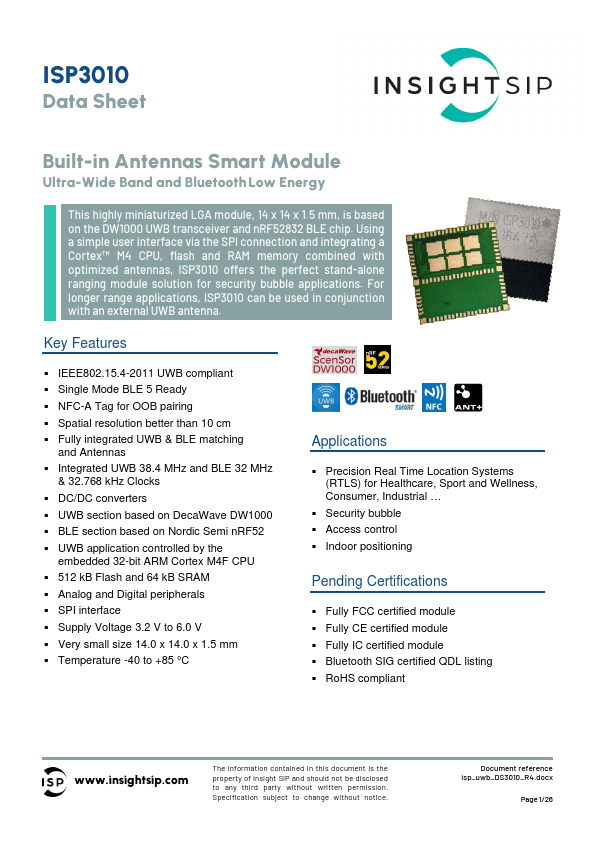

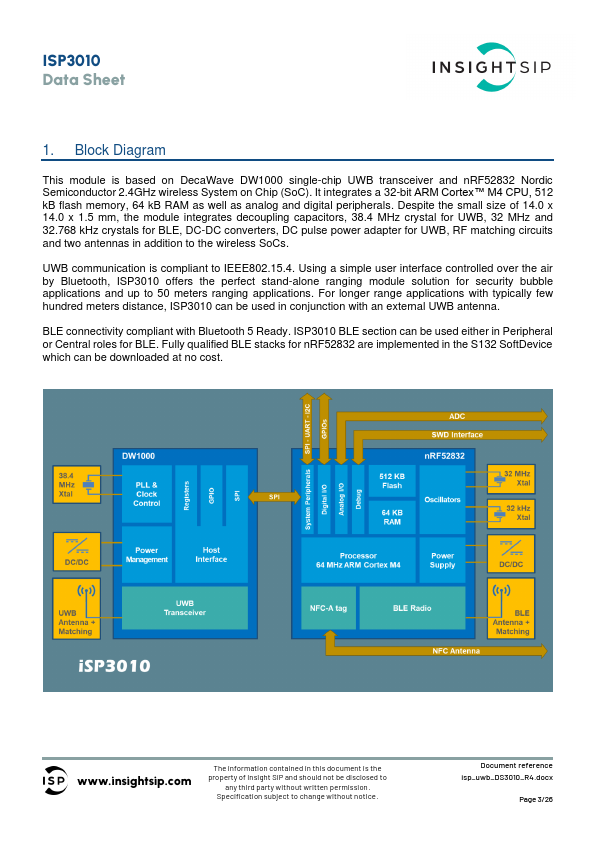

ISP3010 Data Sheet Built-in Antennas Smart Module Ultra-Wide Band and Bluetooth Low Energy This highly miniaturized LGA module, 14 x 14 x 1.5 mm, is based on the DW1000 UWB transceiver and nRF52832 BLE chip. Using a simple user interface via the SPI connection and integrating a Cortex™ M4 CPU, flash and RAM memory combined with optimized antennas, ISP3010 offers the perfect stand-alone ranging module solution for security bubble applications. For longer range applications, ISP3010 can be used in conjunction with an external UWB antenna. Key Features ▪ IEEE802.15.4-2011 UWB compliant ▪ Single Mode BLE 5 Ready ▪ NFC-A Tag for OOB pairing ▪ Spatial resolution better than 10 cm ▪ Fully integrated UWB & BLE matching and Antennas ▪ Integrated UWB 38.4 MHz and BLE 32 MHz & 32.
