ISP4520 Datasheet PDF (Smart LoRa and Bluetooth Low Energy Module)

ISP4520 - Smart LoRa and Bluetooth Low Energy Module

Description

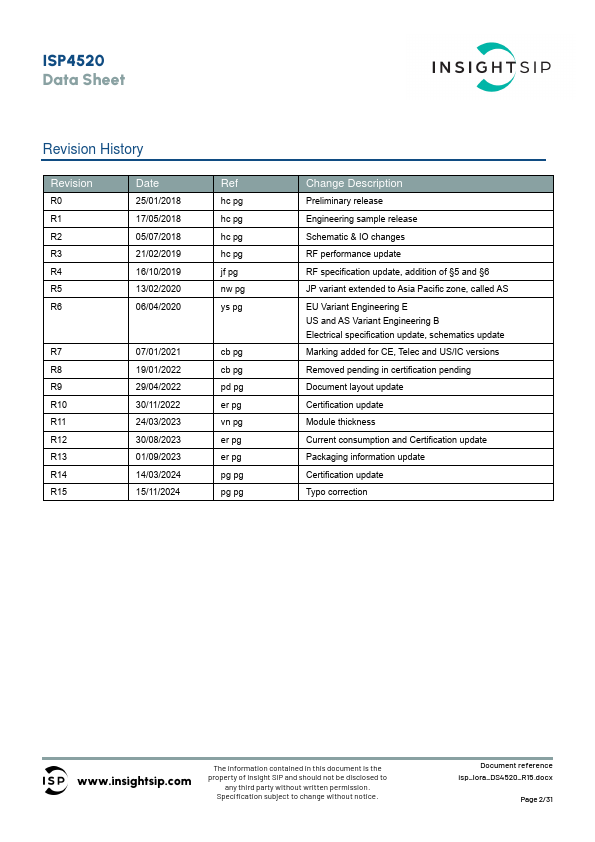

Preliminary release Engineering sample release Schematic & IO changes RF performance update RF specification update, addition of 5 and 6 JP variant extended to Asia Pacific zone, called AS EU Variant Engineering E US and AS Variant Engineering B Electrical specification update, schematics

Features

LoRaWAN Protocol Stack.
Single Mode BLE 5 Ready.
NFC-A Tag for OOB pairing.
Fully integrated LoRa & BLE matching and Antennas.
Integrated LoRa 32 MHz TCXO and BLE 32 MHz & 32.768 kHz Clocks.
LoRa section based on Semtech SX126x series transceiver.
BLE section based on Nordic Semi nRF52.
Externally Controlled or using embedded 32-bit ARM Cortex M4 CPU.
512 kB Flash and 64 kB SRAM.
Analog and Digital peripherals.
SPI interface.
Supply Vo.

Datasheet Details

Part number	ISP4520
Manufacturer	Insight SiP
File Size	2.27 MB
Description	Smart LoRa and Bluetooth Low Energy Module
Datasheet	ISP4520 Datasheet

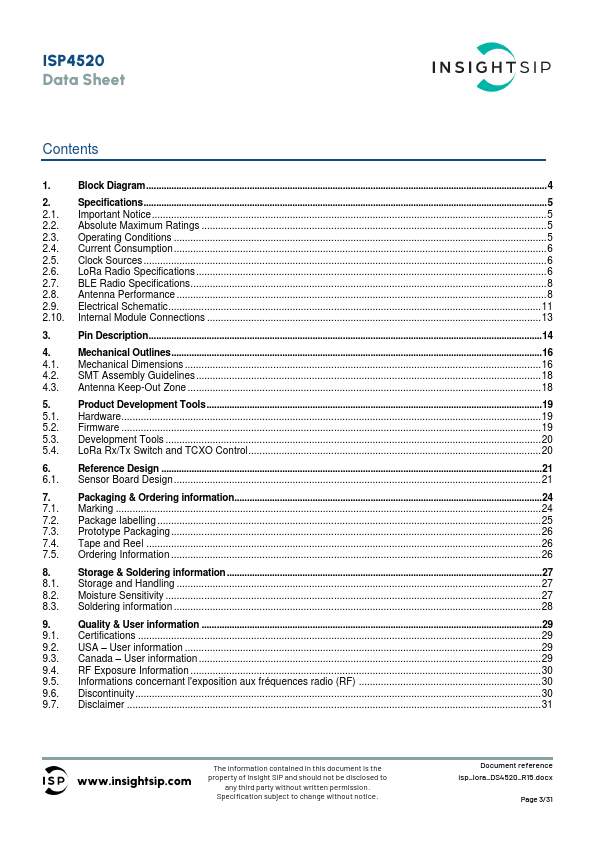

Additional preview pages of the ISP4520 datasheet.

📁 Similar Datasheet

ISP1016E - High-Density Programmable Logic (Lattice Semiconductor)

ISP1032E - High-Density Programmable Logic (Lattice Semiconductor)

ISP1040B - Intelligent SCSI Processor (QLogic Corporation)

ISP1040B - SCSI I/O Processor (Qlogic)

ISP1040C - Intelligent SCSI Processor (QLogic Corporation)

ISP1048E - High-Density Programmable Logic (Lattice Semiconductor)

ISP1102 - Advanced Universal Serial Bus transceiver (NXP)

ISP1102BS - Advanced Universal Serial Bus transceiver (NXP)

ISP1102W - Advanced Universal Serial Bus transceiver (NXP)

Full PDF Text Transcription

Click to expand full text

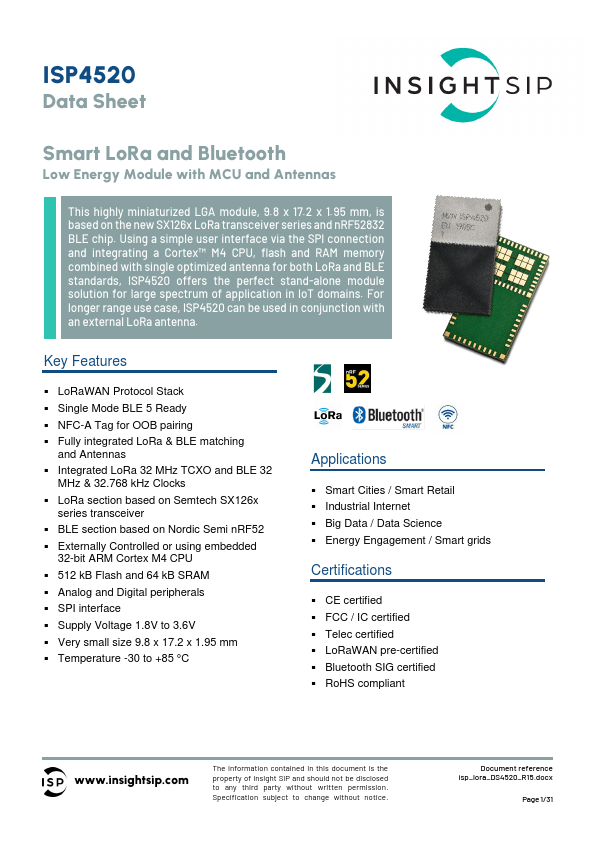

ISP4520 Data Sheet Smart LoRa and Bluetooth Low Energy Module with MCU and Antennas This highly miniaturized LGA module, 9.8 x 17.2 x 1.95 mm, is based on the new SX126x LoRa transceiver series and nRF52832 BLE chip. Using a simple user interface via the SPI connection and integrating a Cortex™ M4 CPU, flash and RAM memory combined with single optimized antenna for both LoRa and BLE standards, ISP4520 offers the perfect stand-alone module solution for large spectrum of application in IoT domains. For longer range use case, ISP4520 can be used in conjunction with an external LoRa antenna. Key Features ▪ LoRaWAN Protocol Stack ▪ Single Mode BLE 5 Ready ▪ NFC-A Tag for OOB pairing ▪ Fully integrated LoRa & BLE matching and Antennas ▪ Integrated LoRa 32 MHz TCXO and BLE 32 MHz & 32.
