IRF8721 - Power MOSFET

Download the IRF8721 datasheet PDF. This datasheet also covers the IRF8721PBF variant, as both devices belong to the same power mosfet family and are provided as variant models within a single manufacturer datasheet.

General Description

Top View SO-8 The IRF8721PbF incorporates the latest HEXFET Power MOSFET Silicon Technology into the industry standard SO-8 package The IRF8721PbF has been optimized for parameters that are critical in synchronous buck operation including Rds(on) and gate charge to reduce both conduction and swit

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IRF8721PBF_InternationalRectifier.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
IRF8721TRPBF N-Channel 30V MOSFET VBsemi
IRF8788TRPBF N-Channel MOSFET VBsemi
IRF8010 N-Channel MOSFET INCHANGE
IRF8010L N-Channel MOSFET INCHANGE
IRF8010S N-Channel MOSFET INCHANGE

Other Datasheets by International Rectifier (now Infineon)

Part Number Description
IRF8721GPbF Power MOSFET
IRF8721PBF Power MOSFET
IRF8721PBF-1 Power MOSFET
IRF8707GPbF Power MOSFET
IRF8707PBF Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

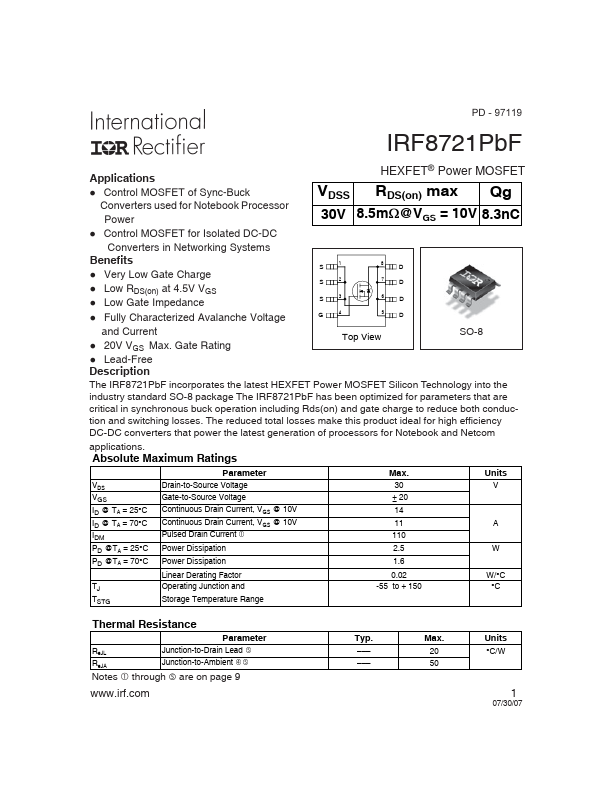

PD - 97119 IRF8721PbF Applications l Control MOSFET of Sync-Buck Converters used for Notebook Processor Power HEXFET® Power MOSFET VDSS RDS(on) max Qg 30V 8.5m:@VGS = 10V 8.3nC l Control MOSFET for Isolated DC-DC Converters in Networking Systems Benefits l Very Low Gate Charge l Low RDS(on) at 4.5V VGS l Low Gate Impedance l Fully Characterized Avalanche Voltage S 1 S 2 S 3 G 4 AA 8 D 7 D 6 D 5 D and Current l 20V VGS Max.
