IRF8721PBF - Power MOSFET

Datasheet Summary

Description

Top View SO-8 The IRF8721PbF incorporates the latest HEXFET Power MOSFET Silicon Technology into the industry standard SO-8 package The IRF8721PbF has been optimized for parameters that are critical in synchronous buck operation including Rds(on) and gate charge to reduce both conduction and swit

📥 Download Datasheet

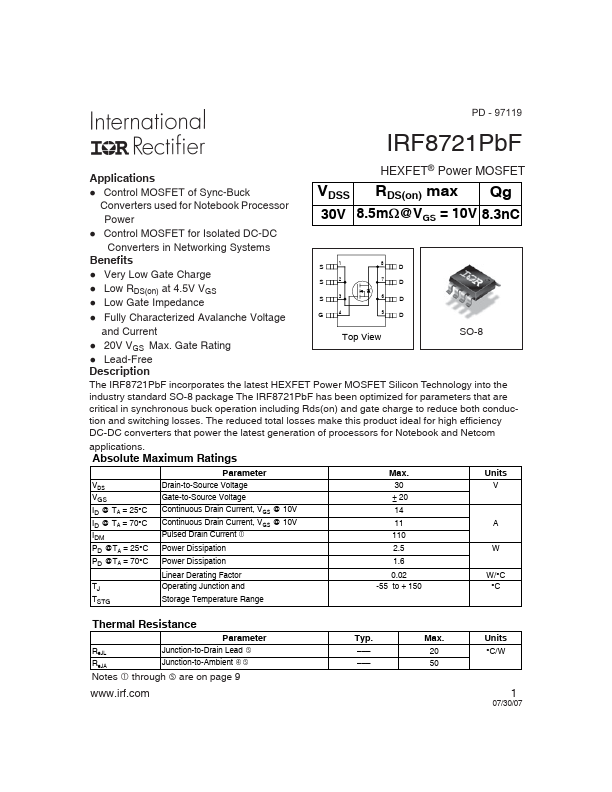

Datasheet preview – IRF8721PBF

📁 Similar Datasheet

  • IRF8721TRPBF - N-Channel 30V MOSFET (VBsemi)
  • IRF8788TRPBF - N-Channel MOSFET (VBsemi)
  • IRF8010 - N-Channel MOSFET (INCHANGE)
  • IRF8010L - N-Channel MOSFET (INCHANGE)
  • IRF8010S - N-Channel MOSFET (INCHANGE)
  • IRF820 - N-Channel Power MOSFET (ART CHIP)
  • IRF820 - N-Channel MOSFET Transistor (Inchange Semiconductor)
  • IRF820 - Power MOSFET (Motorola Inc)
  • IRF820 - N-CHANNEL MOSFET (STMicroelectronics)
  • IRF820 - N-Channel Power MOSFET (Intersil Corporation)
Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text
PD - 97119 IRF8721PbF Applications l Control MOSFET of Sync-Buck Converters used for Notebook Processor Power HEXFET® Power MOSFET VDSS RDS(on) max Qg 30V 8.5m:@VGS = 10V 8.3nC l Control MOSFET for Isolated DC-DC Converters in Networking Systems Benefits l Very Low Gate Charge l Low RDS(on) at 4.5V VGS l Low Gate Impedance l Fully Characterized Avalanche Voltage S 1 S 2 S 3 G 4 AA 8 D 7 D 6 D 5 D and Current l 20V VGS Max.
