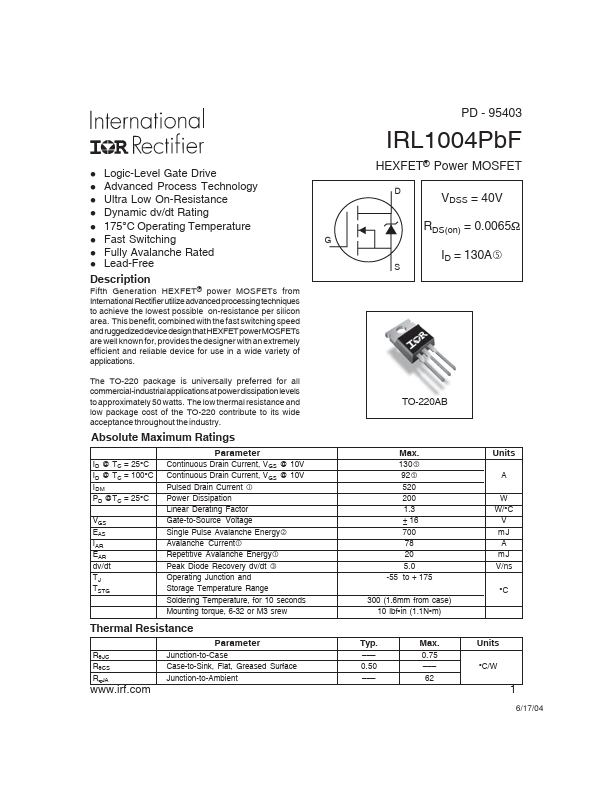

Datasheet Details
| Part number | IRL1004 |
|---|---|
| Manufacturer | International Rectifier (now Infineon) |
| File Size | 163.32 KB |
| Description | Power MOSFET |
| Datasheet | IRL1004_InternationalRectifier.pdf |
|
|
Overview: l Logic-Level Gate Drive l Advanced Process Technology l Ultra Low On-Resistance l Dynamic dv/dt Rating l 175°C Operating Temperature l Fast Switching G l Fully Avalanche Rated l.
| Part number | IRL1004 |
|---|---|
| Manufacturer | International Rectifier (now Infineon) |
| File Size | 163.32 KB |
| Description | Power MOSFET |
| Datasheet | IRL1004_InternationalRectifier.pdf |
|
|
|
Fifth Generation HEXFET® power MOSFETs from International Rectifier utilize advanced processing techniques to achieve the lowest possible on-resistance per silicon area.
This benefit, combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.
The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts.
