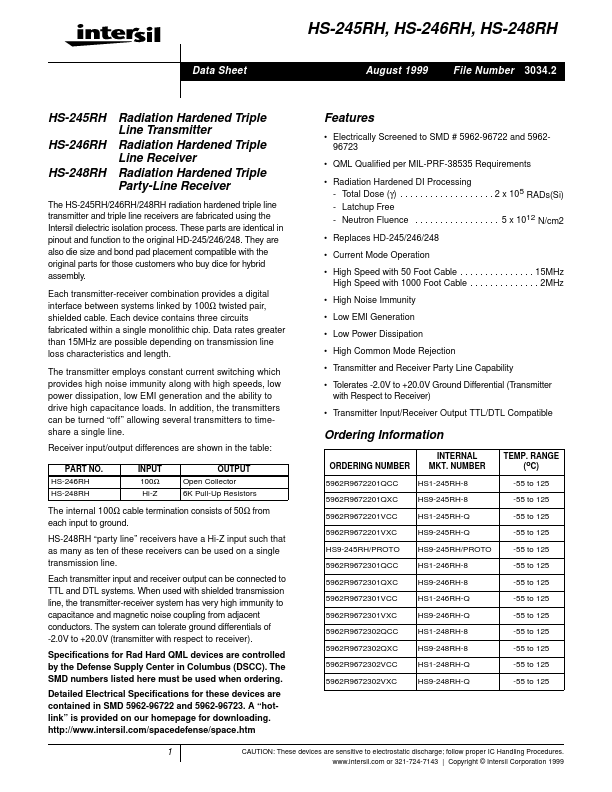

HS9-246RH Overview
These parts are identical in pinout and function to the original HD-245/246/248. They are also die size and bond pad placement patible with the original parts for those customers who buy dice for hybrid assembly. Each transmitter-receiver bination provides a digital interface between systems linked by 100Ω twisted pair, shielded cable.
HS9-246RH Key Features
- Electrically Screened to SMD # 5962-96722 and 596296723
- QML Qualified per MIL-PRF-38535 Requirements
- Radiation Hardened DI Processing
- Total Dose (γ)
- 2 x 105 RADs(Si)
- Latchup Free
- Neutron Fluence
- 5 x 1012 N/cm2
- Replaces HD-245/246/248
- Current Mode Operation
