HIP6601 - Synchronous-Rectified Buck MOSFET Drivers

Features

  • Drives Two N-Channel MOSFETs.
  • Adaptive Shoot-Through Protection.
  • Internal Bootstrap Device.
  • Supports High Switching Frequency - Fast Output Rise Time - Propagation Delay 30ns.
  • Small 8 Lead SOIC Package.
  • Dual Gate-Drive Voltages for Optimal Efficiency.
  • Three-State Input for Bridge Shutdown.
  • Supply Under Voltage Protection.

📥 Download Datasheet

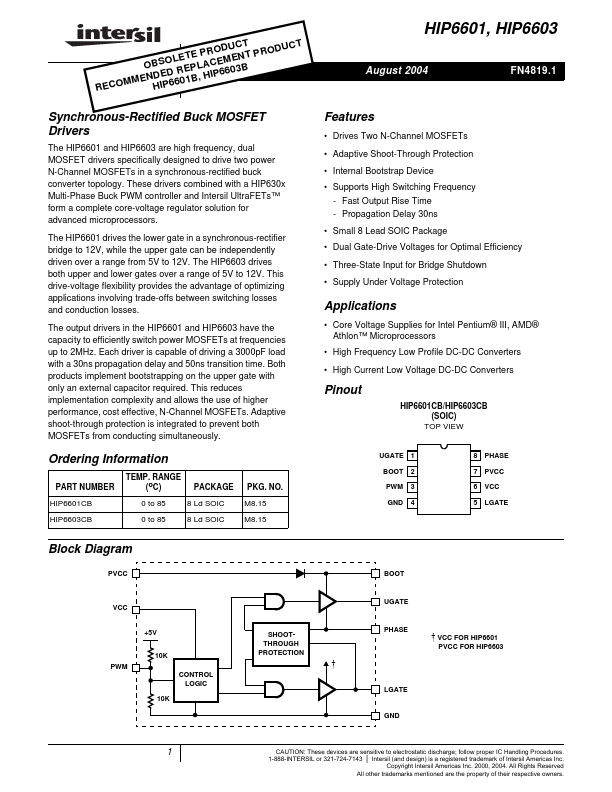

Datasheet preview – HIP6601

Datasheet Details

Part number HIP6601
Manufacturer Intersil
File Size 192.97 KB
Description Synchronous-Rectified Buck MOSFET Drivers
Datasheet download datasheet HIP6601 Datasheet

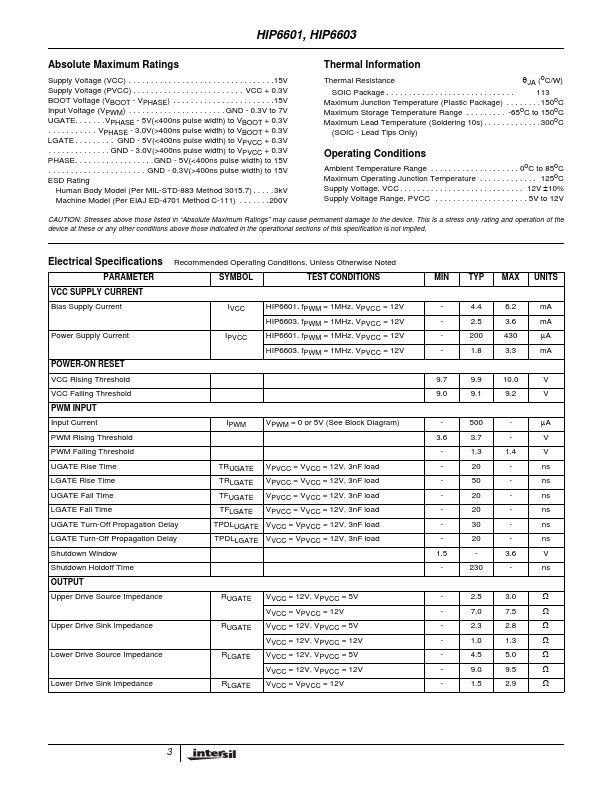

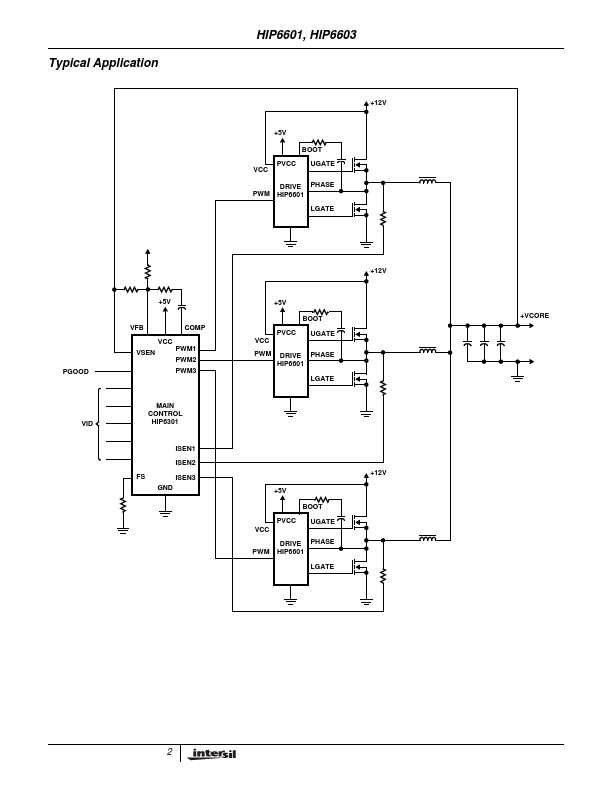

Additional preview pages of the HIP6601 datasheet.

📁 Similar Datasheet

  • HIP6601A - Synchronous Rectified Buck MOSFET Drivers (Intersil Corporation)
  • HIP6601B - Synchronous Rectified BuckMOSFET Drivers (Renesas)
  • HIP6602 - Dual Channel Synchronous-Rectified Buck MOSFET Driver (Renesas)
  • HIP6602B - Dual Channel Synchronous Rectified Buck MOSFET Driver (Renesas)
  • HIP6603A - Synchronous Rectified Buck MOSFET Drivers (Intersil Corporation)
  • HIP6603B - Synchronous Rectified BuckMOSFET Drivers (Renesas)
  • HIP6604 - Synchronous Rectified Buck MOSFET Drivers (Intersil Corporation)
  • HIP6604B - Synchronous Rectified BuckMOSFET Drivers (Renesas)
  • HIP6002 - Rectifier (PWM) Controller and Output Voltage Monitor (Intersil Corporation)
  • HIP6003 - Buck Pulse-Width Modulator (PWM) Controller and Output Voltage Monitor (Intersil Corporation)
Other Datasheets by Intersil
  • HIP6602 - Dual Channel Synchronous-Rectified Buck MOSFET Driver
  • HIP6603 - Synchronous-Rectified Buck MOSFET Drivers
  • HIP6303 - Microprocessor CORE Voltage Regulator Multi-Phase Buck PWM Controller

Full PDF Text Transcription

Click to expand full text
RECOMMEONBHDSIEPOD6L6RE0ET1PEBDL,aPAHtRaCIPOES6DMh6U0eEC3eNBTtT PRODUCT HIP6601, HIP6603 August 2004 FN4819.1 Synchronous-Rectified Buck MOSFET Drivers The HIP6601 and HIP6603 are high frequency, dual MOSFET drivers specifically designed to drive two power N-Channel MOSFETs in a synchronous-rectified buck converter topology. These drivers combined with a HIP630x Multi-Phase Buck PWM controller and Intersil UltraFETs™ form a complete core-voltage regulator solution for advanced microprocessors. The HIP6601 drives the lower gate in a synchronous-rectifier bridge to 12V, while the upper gate can be independently driven over a range from 5V to 12V. The HIP6603 drives both upper and lower gates over a range of 5V to 12V.
