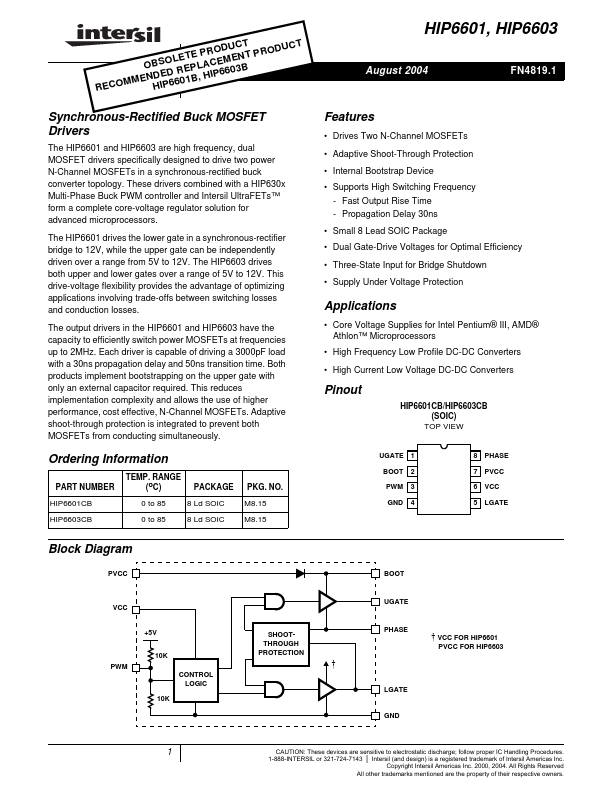

Intersil HIP6603
The HIP6603 drives both upper and lower gates over a range of 5V to 12V. This drive-voltage flexibility provides the advantage of optimizing applications involving trade-offs between switching losses and conduction losses. The output drivers in the HIP6601 and HIP6603 have the capacity to efficiently switch power MOSFETs at frequencies up to 2MHz.| Part No. | HIP6603 |
|---|---|
| Datasheet | HIP6603 Download |
| Manufacturer |  Intersil |
| Description | Synchronous-Rectified Buck MOSFET Drivers |
| Buy | Stock & Price |

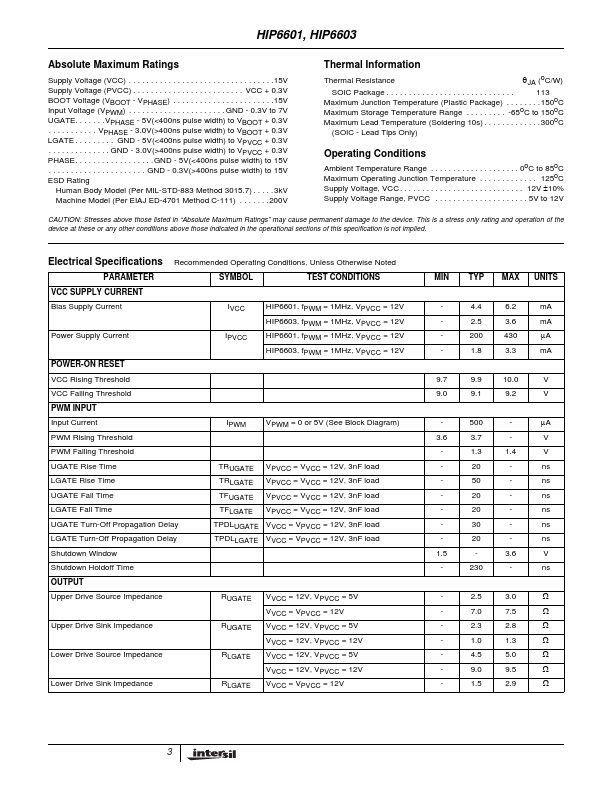

FEATURES
● Drives Two N-Channel MOSFETs● Adaptive Shoot-Through Protection
● Internal Bootstrap Device
● Supports High Switching Frequency - Fast Output Rise Time - Propagation Delay 30ns
● Small 8 Lead SOIC Package
● Dual Gate-Drive Voltages for Optimal Efficiency
● Three-State Input for Bridge Shutdown
● Supply Under Voltage Protection

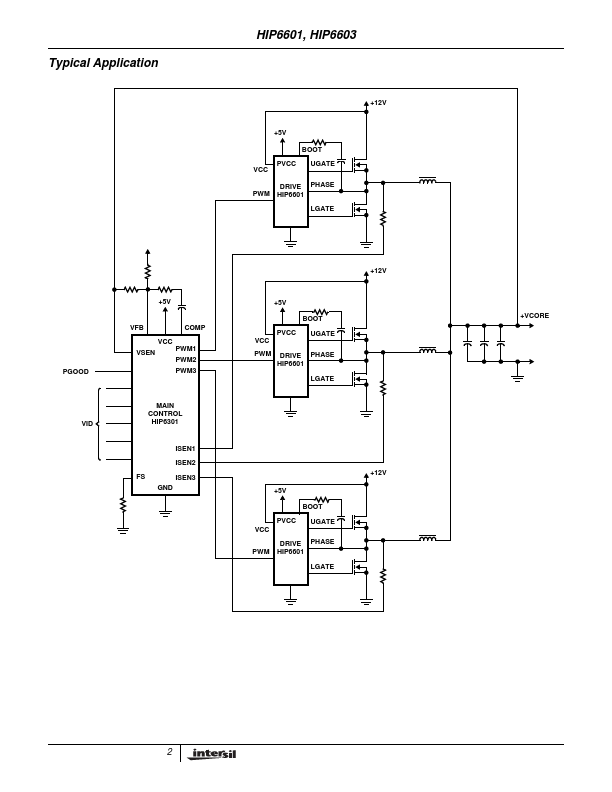

APPLICATIONS
● Core Voltage Supplies for Intel Pentium® III, AMD® Athlon™ Microprocessors● High Frequency Low Profile DC-DC Converters
● High Current Low Voltage DC-DC Converters Pinout HIP6601CB/HIP6603CB (SOIC) TOP VIEW UGATE 1 BOOT 2 PWM 3 GND 4 8 PHASE 7 PVCC 6 VCC 5 LGATE Block Diagram PVCC BOOT VCC +5V PWM 10K CONTROL LOGIC 10K SHOOTTHROUGH PROTECTION † UGATE PHASE † VCC FOR HIP6601 PVCC FOR HIP6603 LGATE GND 1 CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures. 1-888-INTERSIL or 321-724-7143 | Intersil (and design) is a registered trademark of Intersil Americas Inc. Copyright Intersil Americas Inc.
