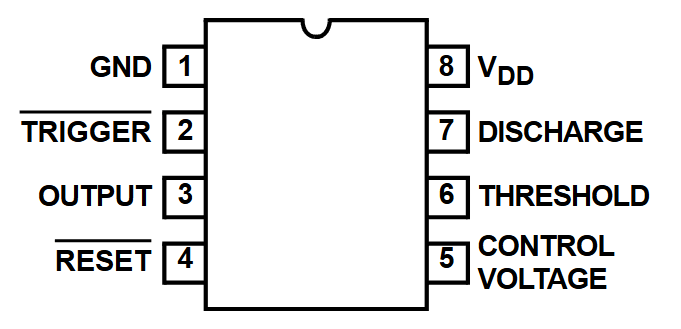

Intersil ICM7555
The ICM7555 and ICM7556 are CMOS RC timers providing significantly improved performance over the standard SE/NE 555/556 and 355 timers, while at the same time being direct replacements for those devices in most applications. The ICM7556 is a dual ICM7555, with the two timers operating independently of each other, sharing only V+ and GND. Specifically, the ICM7555 and ICM7556 are stable controllers capable of producing accurate time delays or frequencies.| Part No. | ICM7555 |
|---|---|
| Datasheet | ICM7555 Download |
| Manufacturer |  Intersil |
| Description | General Purpose Timer |
| Buy | Stock & Price |
FEATURES
● Exact equivalent in most cases for SE/NE 555/556 or TLC555/556● Low supply current - ICM7555 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60µA - ICM7556 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120µA
● Extremely low input currents . . . . . . . . . . . . . . . . . . . . . . 20pA
● High speed operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1MHz
● Guaranteed supply voltage range . . . . . . . . . . . . . . 2V to 18V
● Temperature stability . . . . . . . . . . . . . 0.005%/°C at +25°C
● Normal reset function - no crowbarring of supply during output transition
● Can be used with higher impedance timing elements than regular 555/556 for longer RC time constants
● Timing from microseconds through hours
● Operates in both astable and monostable modes
● Adjustable duty cycle
● High output source/sink driver can drive TTL/CMOS
● Outputs have very low offsets, HIGH and LOW
● Pb-free (RoHS Compliant) Applicati...
