ICS-40619 - High Dynamic Range Microphone

General Description

The ICS‐40619 is an analog MEMS microphone with very high SNR and a low‐power AlwaysOn mode.

The ICS‐40619 includes a MEMS microphone element, an impedance converter, and a differential output amplifier.

Key Features

  • a low‐power mode, which is activated when the supply voltage is.

📥 Download Datasheet

Datasheet Details

Part number ICS-40619
Manufacturer InvenSense
File Size 892.68 KB
Description High Dynamic Range Microphone
Datasheet download datasheet ICS-40619 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ICS-40720 Ultra-Low Noise Microphone TDK
ICS-40730 Ultra-Low Noise Microphone TDK
ICS-41351 Multi-Mode Microphone TDK
ICS1394 Video Dot CLock Generator ICS
ICS1493-17 CLOCK SYNTHESIZER Renesas

Other Datasheets by InvenSense

Part Number Description
ICS-40618 High Dynamic Range Microphone
ICS-40180 Low-Noise Microphone
ICS-40300 High SPL Analog Microphone
ICS-40310 Low-Noise Microphone
ICS-40720 Ultra-Low Noise Microphone

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

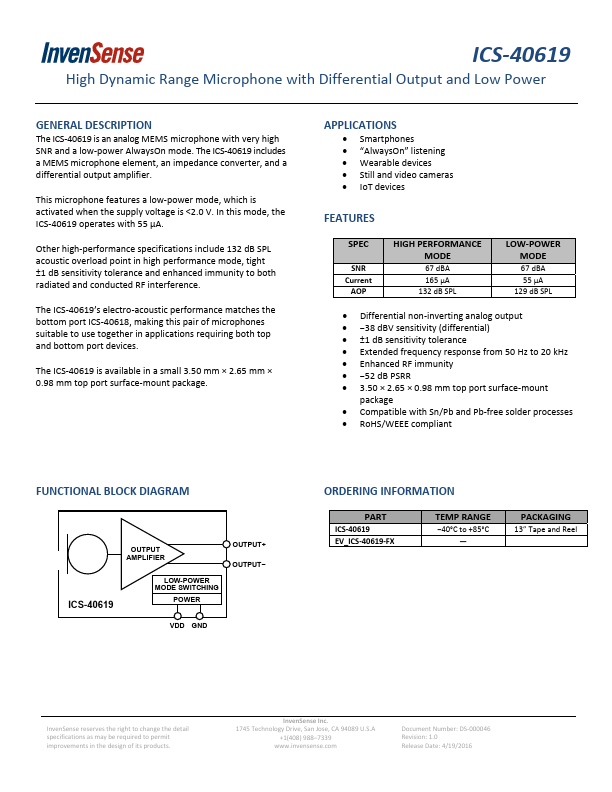

ICS‐40619 High Dynamic Range Microphone with Differential Output and Low Power GENERAL DESCRIPTION The ICS‐40619 is an analog MEMS microphone with very high SNR and a low‐power AlwaysOn mode. The ICS‐40619 includes a MEMS microphone element, an impedance converter, and a differential output amplifier. This microphone features a low‐power mode, which is activated when the supply voltage is <2.0 V. In this mode, the ICS‐40619 operates with 55 µA. Other high‐performance specifications include 132 dB SPL acoustic overload point in high performance mode, tight ±1 dB sensitivity tolerance and enhanced immunity to both radiated and conducted RF interference.
