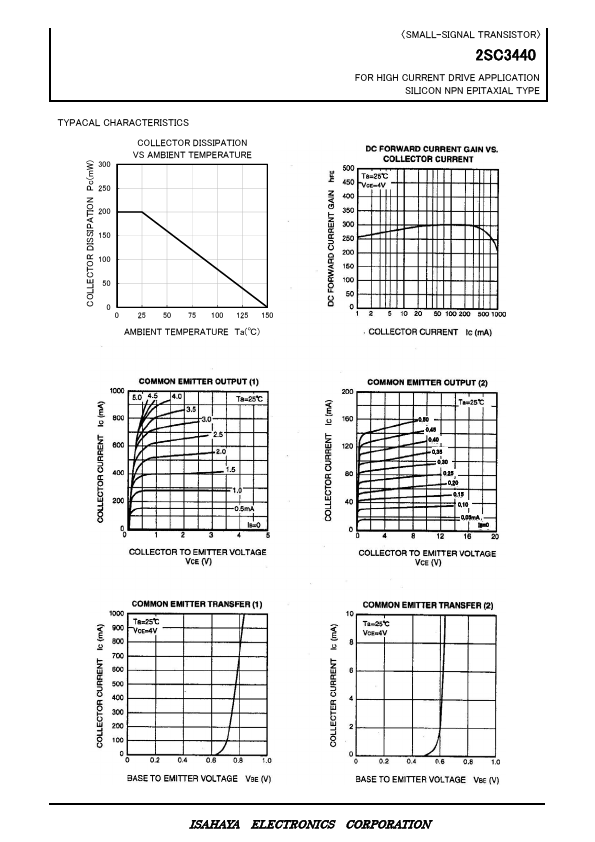

2SC3440
2SC3440 is SILICON NPN EPITAXIAL TYPE TRANSISTOR manufactured by Isahaya Electronics Corporation.
DESCRIPTION
2SC3440 is a super mini silicon NPN epitaxial transistor designed with high collector current, small VCE(sat). plementary with 2SA1365.
〈SMALL-SIGNAL TRANSISTOR〉
FOR HIGH CURRENT DRIVE APPLICATION SILICON NPN EPITAXIAL TYPE
OUTLINE DRAWING
2.8 0.65 1.5 0.65
Unit：ｍｍ
2.8 1.90 0.95 0.95
FEATURE
- Low collector to emitter saturation voltage VCE(sat)=0.2V typ
- Excellent linearity of DC forward current gain.
- Super mini package for easy mounting
- High collector current ICM=1000m A
- High gain band with product f T=180MHz typ
①
②
③
1.1 0.8 0～0.1 0.13
APPLICATION
Small type motor drive, relay drive, power supply
MAXIMUM RATINGS（Ta=25℃）
Parameter
Symbol
Collector to Base voltage
VCBO
Emitter to Base voltage
VEBO
Collector to Emitter voltage
VCEO
Collector current
Peak collector current
Collector dissipation
Pc
Junction temperature
Tj
Storage temperature
Tstg...
