2SC3444
2SC3444 is SILICON NPN EPITAXIAL TYPE TRANSISTOR manufactured by Isahaya Electronics Corporation.

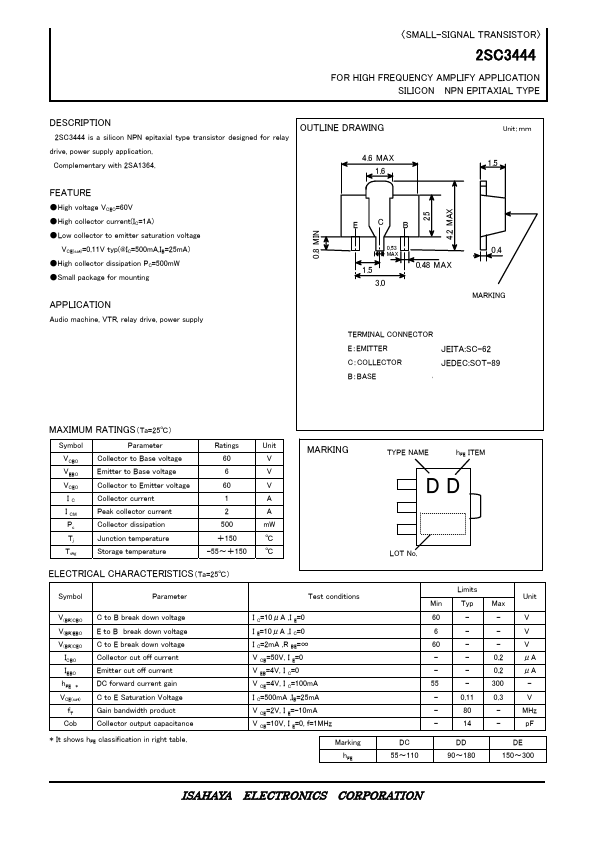

DESCRIPTION
2SC3444 is a silicon NPN epitaxial type transistor designed for relay drive, power supply application. plementary with 2SA1364.
OUTLINE DRAWING
4.6 MAX 1.6
Unit：ｍｍ
FEATURE
- High voltage VCEO=60V
- High collector current(IC=1A)
- Low collector to emitter saturation voltage
VCE(sat)=0.11V typ(@IC=500m A,IB=25m A)
- High collector dissipation PC=500m W
- Small package for mounting
APPLICATION
Audio machine, VTR, relay drive, power supply
0.8 MIN 2.5
4.2 MAX
E CB
0.53 MAX
1.5 3.0
0.4 0.48 MAX
マーキング MARKING
TER電MIN極A接L C続ONNECTOR
E：EMＥI:TエTEミRッタ
C：CＣO:LLコEレCTクOタR Ｂ: ベース
B：BASE
JEITA:SC-62
EJJEIAEDJDEEC: CS::CS-O6T2-89
JEDEC：―
MAXIMUM RATINGS（Ta=25℃）
Symbol
Parameter
Ratings
Unit
VCBO Collector to Base voltage
VEBO Emitter to Base voltage

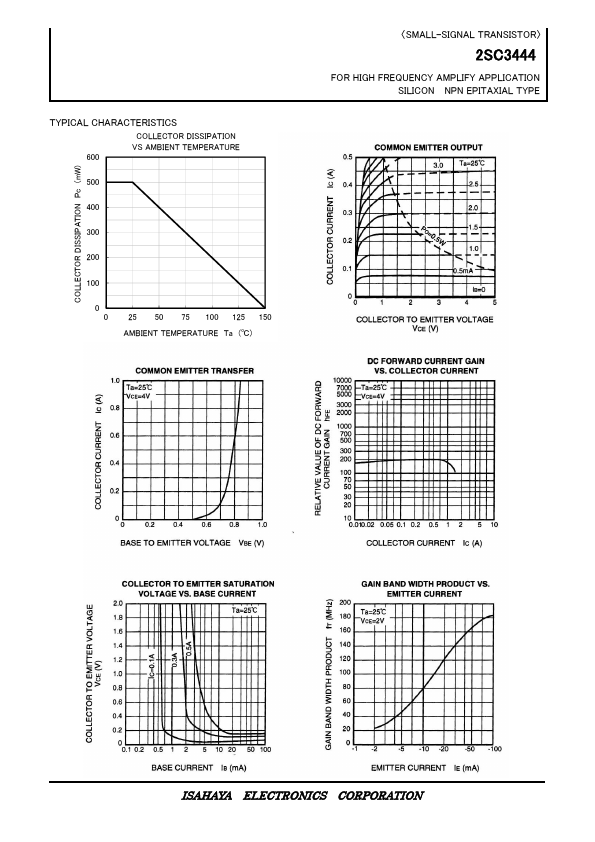

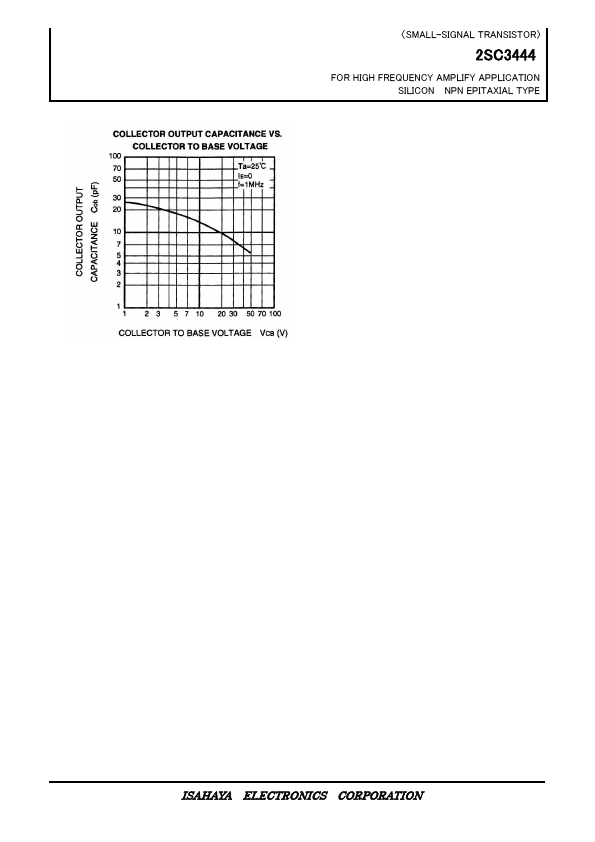

VCEO Collector to Emitter...
