Datasheet Details
| Part number | 2SC3728 |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 69.24 KB |
| Description | Silicon NPN Transistor |
| Datasheet |

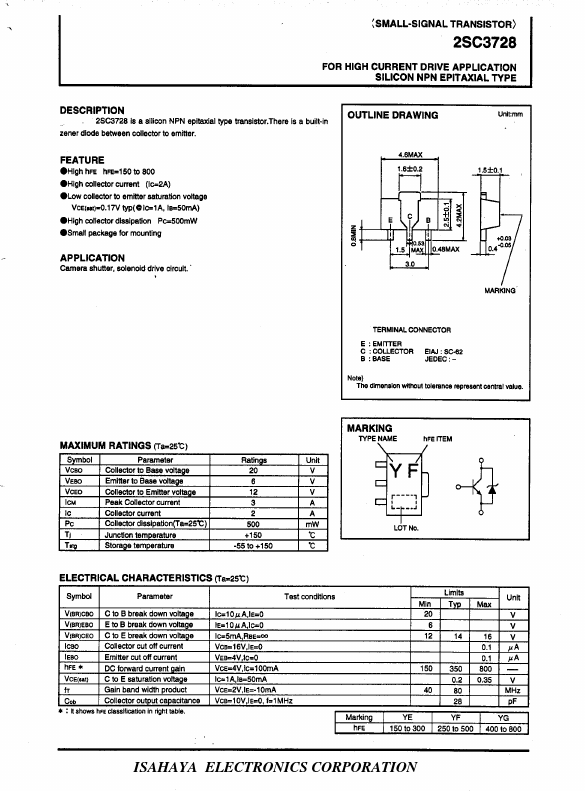

 2SC3728 Datasheet
|
|
|
| Part number | 2SC3728 |
|---|---|
| Manufacturer | Isahaya Electronics Corporation |
| File Size | 69.24 KB |
| Description | Silicon NPN Transistor |
| Datasheet |
2SC3728 Datasheet
|
|
|
|
Note: Below is a high-fidelity text extraction (approx. 800 characters) for 2SC3728. For precise diagrams, and layout, please refer to the original PDF.
ISAHAYA ELECTRONICS CORPORATION...
