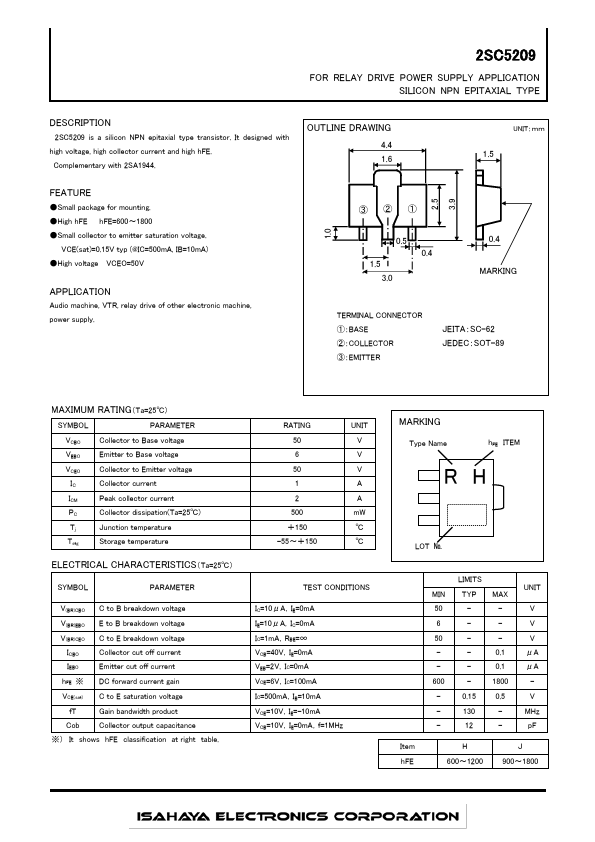

2SC5209
2SC5209 is SILICON NPN EPITAXIAL TYPE TRANSISTOR manufactured by Isahaya Electronics Corporation.
DESCRIPTION
2SC5209 is a silicon NPN epitaxial type transistor. It designed with high voltage, high collector current and high h FE. plementary with 2SA1944.
OUTLINE DRAWING
4.4 1.6
UNIT：ｍｍ
FEATURE
- Small package for mounting.
- High h FE h FE=600～1800
- Small collector to emitter saturation voltage.
VCE(sat)=0.15V typ (@IC=500m A, IB=10m A)
- High voltage VCEO=50V
APPLICATION
Audio machine, VTR, relay drive of other electronic machine, power supply.
1.0 2.5 3.9
③②①
0.5 0.4
1.5 3.0
0.4 MARKING
TERMINAL CONNECTOR ①：BASE ②：COLLECTOR ③：EMITTER
JEITA：SC-62 JEDEC：SOT-89
MAXIMUM RATING（Ta=25℃）
SYMBOL
PARAMETER
VCBO Collector to Base voltage
VEBO Emitter to Base voltage
VCEO Collector to Emitter voltage
Collector current
Peak collector current
Collector dissipation(Ta=25℃)
Tj
Junction temperature
Tstg
Storage temperature

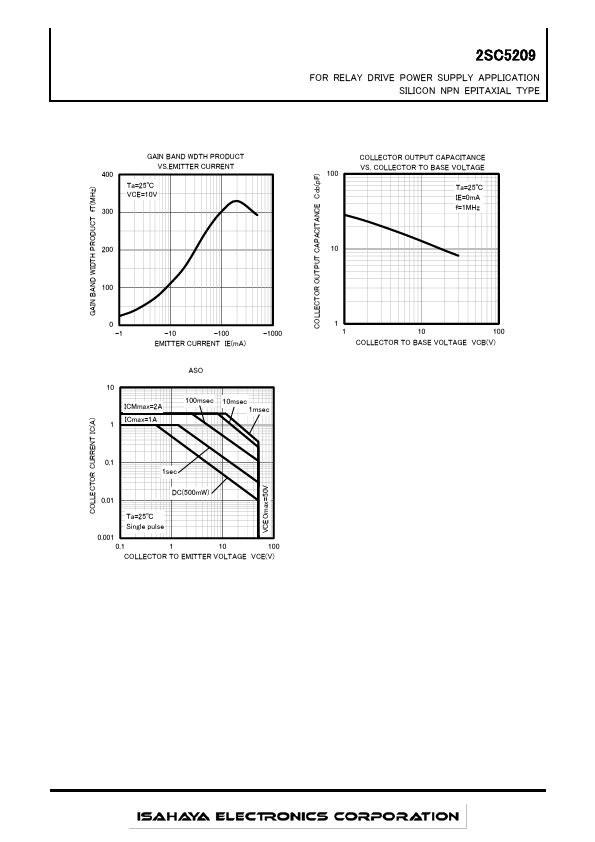

ELECTRICAL CHARACTERISTICS（Ta=25℃）
SYMBOL
PARAMETER...
