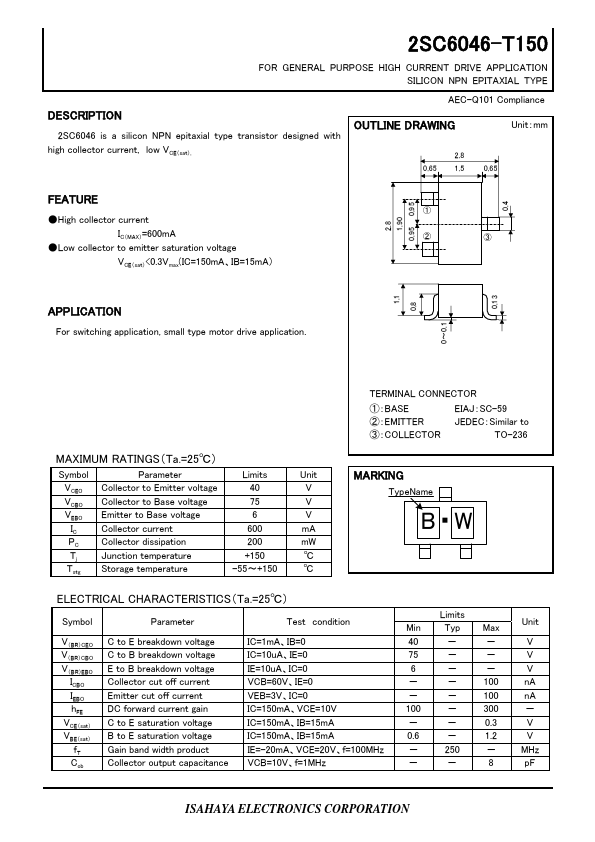

2SC6046-T150
DESCRIPTION
2SC6046 is a silicon NPN epitaxial type transistor designed with high collector current, low VCE（sat）.
AEC-Q101 pliance
OUTLINE DRAWING
Unit：mm
2.8 0.65 1.5 0.65
2.8 1.90 0.95 0.95
FEATURE
- High collector current IC（MAX）=600m A
- Low collector to emitter saturation voltage VCE（sat）<0.3Vmax(IC=150m A、IB=15m A）
①
②
③
APPLICATION
For switching application, small type motor drive application.
1.1 0.8 0～0.1 0.13
MAXIMUM RATINGS（Ta.=25℃）
Symbol
Parameter
Limits
Unit
VCEO Collector to Emitter voltage
VCBO Collector to Base voltage
VEBO Emitter to Base voltage
Collector current
600 m A
PC Collector dissipation
200 m W
Tj Junction temperature
+150
℃
Tstg Storage temperature
-55～+150
℃
TERMINAL...
