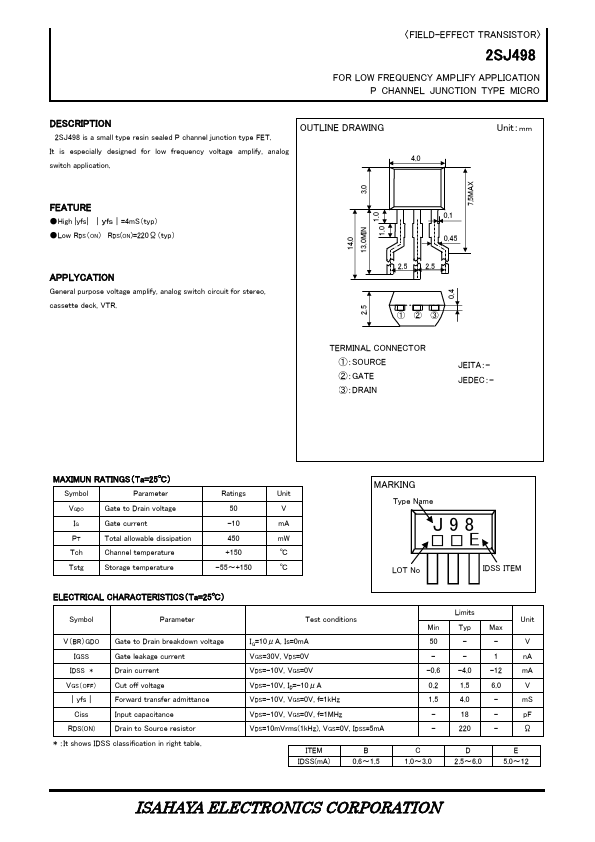

2SJ498
DESCRIPTION
2SJ498 is a small type resin sealed P channel junction type FET.
OUTLINE DRAWING
It is especially designed for low frequency voltage amplify, analog 4.0 switch application.
Unit：ｍｍ
0.4 7.5MAX
FEATURE
- High |yfs| ｜ｙｆｓ｜=4m S（typ）
- Low RDS（ON） RDS(ON)=220Ω（typ）
APPLYCATION
General purpose voltage amplify, analog switch circuit for stereo, cassette deck, VTR.
1.0 1.0
13.0MIN
0.1 0.45 2.5 2.5
①②③
TERMINAL CONNECTOR ①：SOURCE ②：GATE ③：DRAIN
JEITA：JEDEC：-
MAXIMUN RATINGS（Ta=25℃）
Symbol
Parameter
Ratings
Unit
VGDO
Gate to Drain voltage
Gate current
-10 m A
Total allowable dissipation
450 m W
Tch
Channel temperature
+150
℃
Tstg Storage temperature
-55～+150...
