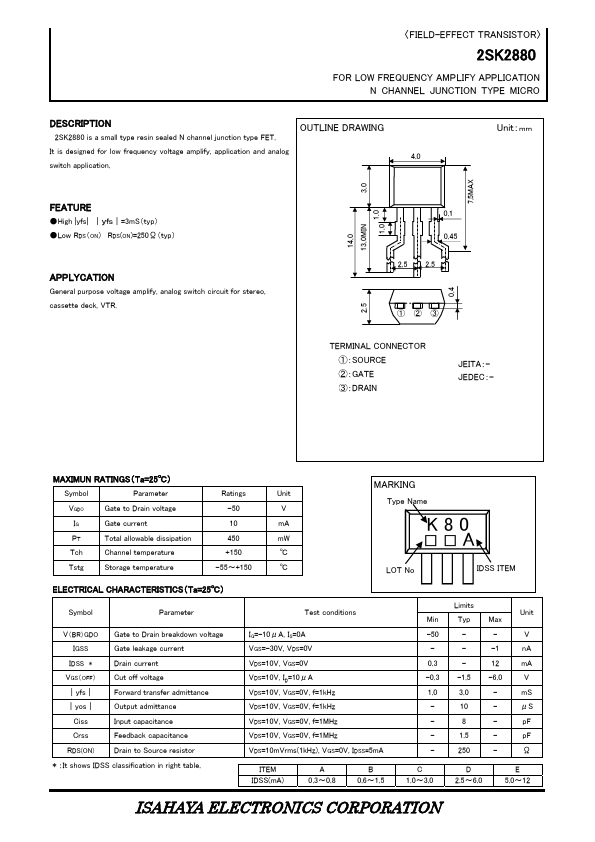

2SK2880
2SK2880 is N-Channel MOSFET manufactured by Isahaya Electronics Corporation.
〈FIELD-EFFECT TRANSISTOR〉
FOR LOW FREQUENCY AMPLIFY APPLICATION N CHANNEL JUNCTION TYPE MICRO
DESCRIPTION
2SK2880 is a small type resin sealed N channel junction type FET.
OUTLINE DRAWING
It is designed for low frequency voltage amplify, application and analog 4.0 switch application.
Unit：ｍｍ
0.4 7.5MAX
FEATURE
- High |yfs| ｜ｙｆｓ｜=3mS（typ）
- Low RDS（ON） RDS(ON)=250Ω（typ）
APPLYCATION
General purpose voltage amplify, analog switch circuit for stereo, cassette deck, VTR.
1.0 1.0
13.0MIN
0.1 0.45 2.5 2.5
①②③
TERMINAL CONNECTOR ①：SOURCE ②：GATE ③：DRAIN
JEITA：JEDEC：-
MAXIMUN RATINGS（Ta=25℃）
Symbol
Parameter
Ratings
Unit
VGDO
Gate to Drain...
